Problems with trees in pavements in Funchal, Madeira in January/February 2018
PROBLEMS WITH TREES IN PAVEMENTS IN FUNCHAL, MADEIRA IN JANUARY/FEBRUARY 2019

Death of tree roots and
Death of tree trunks/branches caused by people.
Solution to problems for trees caused by people using irrigation -
Growth of Pollarded Tree in Hotel Garden in 1 year provides a water solution to this destruction.

Damage to Tree Trunks 1, 2, 3, 4 caused by people,
Damage to Tree Roots caused by people,
Area of Open Ground round trees,
New Trees in pavements 1, 2,
Irrigation of current trees,
Watersprouts on trees,
Crossing Branches in trees,
Utility Equipment with tree Foliage,
Lights on trees,
Bycycle Lane in Pavement,
Public Gardens alongside pavements,
Hotel/Private Gardens alongside pavements,
Current Permeable Pavement Surface round trees and
Irrigation and Fertilising of trees.

The following mechanical injuries to trees and shrubs is from Page 489 of Collins Guide to the Pests, Diseases and Disorders of Garden Plants by Stefan Buczacki andKeith Harris. Published by William Collins Sons & Co Ltd was first published in 1981 this is the sixth Reprinted version was published in 1989 - ISBN 0 00 219103 2:-

"Covering of bases of established plant stems.
Compacted soil, asphalt (see Photo 4 in this page for compaction by lorries driving over road tarmac; and the next cell in this row) or worse, concrete (such as that laid for paths) will upset the water-air balance in which a plant and its root system have become established and may well give rise to asphyxiation and death of the tissues. Symptoms usually appear as a wholesale dying back of the plant and although removal of the asphixiating surface, if done sufficiently early, may result in recovery, it frequently does not.

Incorrect planting.
Constriction of roots can result in the development of a very shallow root system and consequent instability while roots badly arranged in the planting hole can subsequently encircle the stem base and cause a girdling dieback (see Photo 19 on Area of Open Ground round tree in Madeira Page for girdling of roots). Soil should be sloped away from newly planted trees to prevent rainwater from collecting and either giving rise to injury when it freezes or predisposing the stem base to attack by decay organisms.

Pruning damage.
Incorrect pruning can be very harmful, especially if branch stumps are left unprotected, these will die and provide entry points for decay organisms (see Damage to tree trunks in Madeira caused by people pages). Inadequate pruning can result in a mass of twigs (see Photo 3 in Solution to tree problems page for these twigs as well as water sprouts) which leads to general unthriftiness and provides conditions in which many pathogenic organisms can flourish. Pruning should be performed carefully, at the appropriate season for each plant and large wounds should be dressed with a sealant containing fungicide (see Photo 4 in Solution to the tree problems page to see the lack of sealant) , like Solabiol Arbrex Seal and Heal instead of the cheaper Black water-based Masonry Paint, which I have used for years.

Wounding
From any cause, ranging from penkknives (see Photo 25 on Damage to tree trunks in Madeira caused by people page) to over-tight support wires, can injure trees, and shrubs. Any agency, such as lawnmowers or gates, that physically strikes plants is likely to remove bark and/or other tissues and so enable decay organisms to enter. Support wires, stem ties or fencing nails (See Photo 62 on Damage to tree trunks in Madeia caused by people Page 2 damage caused by fixings of this metal mesh to the tree) can cause damage which results in gradual dieback. Any constricting agencies should be removed and stem wounds should be cut clean and treated with a wound sealant. Such wounds may be mistaken for cankers but unlike them do not usually display any annual extension of damage.Careless handling of fruit and vegetable produce, especially at harvest time and staff stacking supermarket shelves, will almost always lead to injuries and subsequent losses through decay if they are later stored in the farm, warehouse, supermarket or home.

The following trees and shrubs are usually resistant to salt-spray damage and may be useful in coastal gardens; Monterey cypress, escallonias, hebes, holm oak, hydrangeas, oleareias, Austrian and Monterey apines and tamarisks."



Van den Berk on Trees gives a Searching System starting on Page 868 where it gives trees suitable for coastal regions, another for street tree and another where the trees stand up to hard surfaces. This book is written by Van deb Berk Nurseries and has a different ISBN for The Neherlands - 90-807408-5-3, United Kingdom 90-807408-8-8, France - 90-807408-7-x and Germany 90-807408-6-1. The book is written by professionals for professionals and does not waste space, but provides you with just the correct information that you require in choosing the right tree out of 1101 trees and cultivars in 1032 pages with 1700 photos.

Photo 4 - tree 99 from pestana promenade to forum tree in road IMG_6057.JPG

For the following situation where a tree is partly situated within the road:-

  • At least 1/3 of the trunk now sits in the road with its lateral roots under the tarmac and raising that same tarmac, even the tyres of the buses and 40 ton lorries run over them.
    The trunk is also growing over the concrete pavers in the pavement.
    Some of the lateral roots are now also growing between those same paver and under them raising those pavers as well.
    The tree has also depressed the kerb and grown over it.
  • I wonder how much of the trunk is actually connected between the exposed part above ground and the tap root/lateral roots below ground level.

The following method could be used to prevent the tree from being hit by lorries and other traffic:-

  • Besides carefully removing the kerb and pavers from this tree and installing the CORE TRP SYSTEM and irrigation system for this whole pavement, the following safety system could be done for the tree:-
  • Remove 20 cms of tarmac from around the tree of the road tarmac.
  • 2 metres from the tree from the Forum Shopping Centre end, install a heavily re-inforced concrete seat, which is 40 cms (16 inches) into the road and 2 metres long towards the Forum Shopping Centre with its back being 2 metres high. This would make this seat before the tree in terms of the traffic flow. This would be visible to cars, vans, buses and 40 ton lorries from their cabs, since it would be painted in luminous yellow and red stripes, so it could be seen at night as well. The reinforcement in the concrete seat would also extend along the road towards the forum for a further 2 metres (80 inches) with 30 cm (12 inch) vertical prongs into the road, so that if the traffic hits this seat, then the seat is unlikely to move much because of its friction force in the road, but you could say that it might damage the traffic that hit it instead of the tree. The 40 cms (16 inches) into the road may not even reach the cracks in the tarmac that one can see, but hopefully it should stop drivers from driving into the tree. The concrete seat would be visible from the driving position through the side window of cars, vans, buses and lorries, so instead of hitting the signs indicating tree in road, I do not think that even buses and lorries would appreciate the severe damage if these concrete seats are run into.
  • You could of course move the road out by 60 cms (24 inches) and take away that 60 cms from the traffic island in the middle to solve the problem, and this would give a larger width for the pavement as people either wait for public buses opposite the Forum or wait on the pavement for tour buses outside their hotels.
  • Replace existing kerbs and replace with either Side Offlet Kerbs to provide rainwater to the trees from the road:-
    • Side Offlet Kerbs, sometimes known as Weir Kerbs, for use with behind-kerb drainage systems. They have largely been replaced by kerb-drain units nowadays, but they were quite popular 25+ years ago. They often have a cast iron or steel grille or facing to keep the worst of the street litter out of the sewers. Only use the Side Offlet Kerb without a behind drainage system, because 1) the existing drain on the road takes care of the remaining water that falls on the road and that is not used by 2) the ground behind the kerb and a layer of geotextile to prevent the ground from coming out to the road and prevent tree roots from catching the local bus - the bus company would not mind, but the tree roots would not pay to go travelling in this fashion.
    • or High Containment Kerbs to protect the sensitive roadside equipment, mothers with prams to get through limited space when vehicles are partly or fully parked on the pavement,, and newly planted trees:-
    • High Containment Kerb, such as the Trief or Titan kerbs. These are used to prevent traffic leaving the carriageway and are often used to protect vulnerable footpaths or sensitive roadside equipment, such as fuel pumps at filling stations, pedestrian islands, dangerous curves, etc.
      These are BIG kerbs, measuring around 450mm in height and weighing almost a quarter of a tonne. These could be used instead of the reinforced concrete seating by simply adding this to the outside of the existing kerbs for trees in the road, or straight replacement when the tree roots are within the pavement - it may be necessary to leave the original kerb within 2 metres of the tree since lateral roots are strongest in that length and having a quarter ton on a lateral root would tend to kill it - like having a car tyre sitting on one of your feet with a quarter of its weight would be uncomfortable.
  • When the tree is eventually replaced, try to have a tree variety whose final trunk size in its maturity; closest to the road, does not cover the kerb or go into the road.
  • Cast Iron Kerbing could be laid in a double row with 3 inches (7.5 cms) between the rows round trees in pavements where the open ground round the tree is continuously stepped on by pedestrians, ridden over by bicycles; even if that area is growing a GREEN MANURE to fertilise the tree..

Besides providing seating for pedestrians, they could be used by craftsman to sell their products as shown by Photo 6 below.


Text for Photo 1, 2, 3 and 4



Photo 1 taken by Chris Garnons-Williams In Madeira.
Photo 2 taken by Chris Garnons-Williams In Madeira.



Photo 3 taken by Chris Garnons-Williams In Madeira.


Photo 4 taken by Chris Garnons-Williams In Madeira.

Photo 1 - tree 98 from pestana promenade to forum new tree IMG_6053.JPG

Great place to plant a new tree right next door to the road with less than 60 cms (24 inches) from the main road.

Photo 2 - tree 98 from pestana promenade to forum new tree IMG_6056.JPG

It has been here for a year or two with some foliage. The next tree in this pavement is shown in the next row. I am not the world's best photographer, but you get the idea from the outline of this tree, etc.

Photo 3 - tree 98 from pestana promenade to forum new tree recently pollarded IMG_6055.JPG

Brilliant - hack off the top of the trunk and tear off the branch that was going into the road. Leave the torn area exposed to rot.

This tree will rot down from the top of the trunk. The torn branch will also rot and within 4 years this tree will be left as a tall stump.

What a complete disaster.

newtrees1garnonswilliams

newtrees2garnonswilliams

newtrees3garnonswilliams

Photo 4 - tree 99 from pestana promenade to forum tree in road IMG_6057.JPG

At least the previous tree in the previous row will never reach the problems of this one.
At least 1/3 of the trunk now sits in the road with its lateral roots under the tarmac and raising that same tarmac, even the tyres of the buses and 40 ton lorries run over them.
The trunk is also growing over the concrete pavers in the pavement.
Some of the lateral roots are now also growing between those same paver and under them raising those pavers as well.
The tree has also depressed the kerb and grown over it.

I wonder how much of the trunk is actually connected between the exposed part above ground and the tap root/lateral roots below ground level.

Besides carefully removing the kerb and pavers from this tree and installing the CORE TRP SYSTEM and irrigation system for this whole pavement, the following safety system could be done for the tree:-

Remove 20 cms of tarmac from around the tree of the road tarmac.

2 metres from the tree from the Forum Shopping Centre end, install a heavily re-inforced concrete seat, which is 40 cms (16 inches) into the road and 2 metres long towards the Forum Shopping Centre with its back being 2 metres high. This would make this seat before the tree in terms of the traffic flow. This would be visible to cars, vans, buses and 40 ton lorries from their cabs, since it would be painted in luminous yellow and red stripes, so it could be seen at night as well. The reinforcement in the concrete seat would also extend along the road towards the forum for a further 2 metres (80 inches) with 30 cm (12 inch) vertical prongs into the road, so that if the traffic hits this seat, then the seat is unlikely to move much because of its friction force in the road, but you could say that it might damage the traffic that hit it instead of the tree. The 40 cms (16 inches) into the road may not even reach the cracks in the tarmac that one can see, but hopefully it should stop drivers from driving into the tree. The visible part of the steel reinforcement would on each side and the horizontal rail at 100 cms and the top at 200 cms of H frame structural steel made to support buildings. Drivers of any low car/van or high lorry, bus, coach vehicle could then see this strength of material and not run into it, even though they are quite happy to run into the tree trunks within the road. Just think of the world market niche that these steel firms could now enter in making reinforced seating to protect trees within roads throughout all the countries in this planet - how's that for free marketing!!!

You could of course move the road out by 60 cms (24 inches) and take away that 60 cms from the traffic island in the middle to solve the problem, and this would give a larger width for the pavement as people either wait for public buses opposite the Forum or wait on the pavement for tour buses outside their hotels.

When the tree is eventually replaced, try to have a tree variety whose final trunk size in its maturity; closest to the road, does not cover the kerb or go into the road.

newtrees4garnonswilliams

Photo 5 - tree 99 from pestana promenade to forum tree in road IMG_6059.JPG

The other side of the same tree. This is the side that would come into contact with the tyres or bodywork of the impacting vehicle.

It looks like it is earth between the kerb and the concrete pavers, which leads me to think that these pavers are simply laid on the bare earth and not on a valid sub-base.
Still the grass enjoys it.

newtrees5garnonswilliams

Photo 6 - homemade crafts IMG_6239.JPG

The new concrete seats detailed with Photo 4 above could also be used by craftsman to sell their products.

These concrete seats could be used to safeguard the trees in the road between the Forum and the Pestana Promenade Hotel and between the Lido and the Pestana Mirimar Hotel.

newtrees6garnonswilliams

Photo 7 - tree 7 forum end of 2 road junction IMG_6146.JPG

New tree with upper foliage and a reasonable size of trunk. No irrigation system visible.

Photo 8 - tree 7 forum end of 2 road junction IMG_6145.JPG

Are these watersprouts or valid branches - I suspect that the majority are watersprouts. Has no one in Madeira attended a tree maintenance course? or is everybody intent on pollarding trees in pavements in Funchal? including old olive trees costing 2000 euros each half way up the new Savoy Hotel. See Photo 33 below.

newtrees7garnonswilliams

newtrees8garnonswilliams

Photo 9 - tree 23 from end of 2 road junction next section of road IMG_6224.JPG

A juvenile tree has been pollarded after it was planted here. Watershoots are now providing the upper foliage

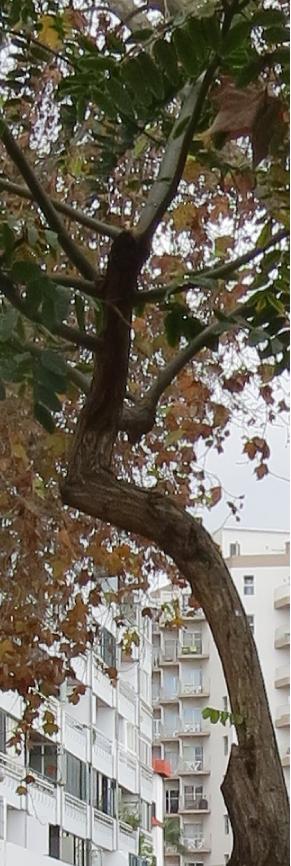

Photo 10 - tree 23 from end of 2 road junction next section of road IMG_6224.JPG

Detail of where these watershoots are growing from the stumps of a branch and the main trunk with further watersprouts from the main trunk. One the trunks in the tree fork has been cut off.

newtrees9garnonswilliams

newtrees10garnonswilliams

Photo 11 - tree 23 from end of 2 road junction tree in garden IMG_6219.JPG

This is mature tree in the public/hotel garden next to the bicycle pavement and close to the tree in the pavement in the row above.

Strange but I do not notice that this tree exhibits having been pollarded. Is this pollarding practice a recent procedure carried out mostly on trees in the pavement in Funchal, followed by starting as you mean to go on by pollarding juvenile trees only recently planted in those same pavements?

newtrees11garnonswilliams

Photo 12 - tree 24 from end of 2 road junction pollarded juvenile tree IMG_6225.JPG

Pollarded juvenile tree with watersprouts.

Photo 13 - tree 26 from end of 2 road junction IMG_6234.JPG

Detail of result of first pollarding.

Photo 14 - tree 26 from end of 2 road junction IMG_6234.JPG

Photo 13 shows that this tree was pollarded just before being originally planted. The watersprouts that grew from the stump created a tree fork. Branches further up on the left hand branch have been snapped off and the first main branch from that new watersprout trunk on the left has also been pollarded.

One can see that this new tree is outside a restaurant, but if the restaurant wanted a different view of a tree on their section of road pavement, surely a different unhacked tree could have been planted from the trees native or naturalised on the island.

newtrees12garnonswilliams

newtrees13garnonswilliams

newtrees14garnonswilliams

Photo 15 - tree 28 from end of 2 road junction next road section IMG_6247.JPG

Do you get the impression that these more mature trees have not been pollarded and yet they have still grown to provide a good wide spread of foliage - to shade and prevent the sun when low in the sky from blinding pedestrians or drivers of vehicles?

Since I was illegally standing in the cycle lane taking this photo, the cyclist has illegally cycled in the pedestrian lane. It is appaling the level of crime inflicted by tourists on you unsuspecting native population - I can understand your horror and why this man has had to sit down to recover from the shock. The pain suffered by his posterior on such a poor small seat can only be understood when one considers that a normal stuffed reclining armchair to provide a gentle support for that posterior and legs may be too wide to fit within either section of that constructed bicycle lane. We all have our cross to bear.

newtrees15garnonswilliams

Photo 16 - tree 163 from golden gate to harbour permeable base new tree IMG_0161.JPG

This tree has been planted in a hole with maybe more than 40 inches (100 cms) enclosure, which has been further reduced to about 12 inch (30 cm) in diameter of open ground. The area between the 2 enclosures is trodden on by pedestrians which damage the roots under it. The thin layer of gunge between the roots and the earth can easily be squeezed away by the people's weight on the ball of 1 foot.



Photo 17 - tree 163 from golden gate to harbour permeable base new tree IMG_0161.JPG

This shows the 2 stakes that have been used to keep this tree trunk upright. The top rubber tie has bound the tree directly to the post - this leaves no room for the tree to expand and the 2 ties also stop the trunk from moving up as it grows. Before a new tree is planted it should be able to support itself without any help from external sources.
If only the bottom support had been there with the stakes reduced to 4 inches (10 cms) above the tree tie, then if the tree had been self-supporting the following 2 occurrences would have happened:-

  • the trunk being prevented from exiting the ground would have been under bending pressure from side winds and decided that instead of new branch growth, that it would need to concentrate on grwing the trunk first to provide the strength to stop the trunk from being snapped off.
  • due to the same reason, the swaying trunk above the tie would have vibrated the roots under the ground and this would have persuaded the laterals to get a move on and get there work done in providing the stability of this tree in the ground, so that when the tie was removed and possibly the stake, that this juvenile tree was better able to withstand the conditions in which it was to grow.

newtrees16garnonswilliams

newtrees17garnonswilliams

Photo 18 - tree support for new tree at Aldi, Gillingham IMG_0210.JPG

This tree support system allows the trunk above it to bend in the wind without the tree being pulled out of the ground.

Photo 19 - rubber support at Aldi, Gillingham IMG_0211.JPG

There is a rubber spacer between the tree and wooden support. You can see that the tree has slightly grown up and a new section of brown bark is on show.

Photo 20 - tree trunk at aldi, gillingham IMG_0213.JPG

Maybe this tree was put with a different rootstock to it's own. The visible laterals have grown well.

Photo 21 - tree label at Aldi, Gillingham IMG_0212.JPG

This tree was grown at Barcham nursery. Their larger trees are grown in their patented white Light Pots:- "Think of a bare rooted tree or root balled tree in terms of a running pump with no access to water. A tree’s system is pressurized to carry water from the roots to the shoots and if the roots are exposed the tree cannot then move water around its system and so quickly dies of dehydration.  Our large trees are all grown in our patented Light Pots which provide an un-wounded and vibrant root system at planting so it doesn’t matter whether you plant a small tree or a large specimen tree from Barcham, they are all geared up for rapid establishment.  Our roots are in fully functional order when you take delivery for your trees!"

Photo 22 - New tree at Aldi, Gillingham IMG_0209.JPG

This very tall juvenile tree was grown in a nursery and transplanted here less than 2 years ago. Even though this tree is surrounded by grass, planted with steep slopes in the front and back, and in competition with the tree roots of mature trees behind it has grown high and appears healthy. Since this tree is shaded by others the outside of the trunk has gone green, which could be algae, lichen or moss.

Interesting to note that at least 3 of the mature trees behind this juvenile tree have tree forks.

newtrees18garnonswilliams

newtrees19garnonswilliams

newtrees20garnonswilliams

newtrees21garnonswilliams

newtrees22garnonswilliams

Photo 23 - tree with blistering at aldi, gillingham IMG_0222.JPG

This tree had red spots on its trunk. What they indicated, I do not know, nor do I know why most of the trees between the rows of parked cars for this supermarket had their bark damaged and who had probably died.

Photo 24 - tree with blistering at aldi, gillingham IMG_0222.JPG

Closeup of trunk. The bark is splitting.

Photo 25 - bark on fourth tree at aldi, gillingham IMG_0219.JPG

Could this be Beech bark disease?

newtrees23garnonswilliams

newtrees24garnonswilliams

newtrees25garnonswilliams

Photo 26 - bark on fourth tree at aldi, gillingham IMG_0219.JPG

A pest has attacked this tree and removed the bark up and round this trunk. If this tree has had all its bark removed from a small height all the way round the trunk, then all growth above that will die.

Note how thin the bark is and with it no longer functioning nor does the tree.

I wish people would not use penknifes to cut into tree trunks to leave their names or heart shapes, since they could kill that tree.

newtrees26garnonswilliams

Photo 27 - tree 63 from pestana mirimar juvenile tree IMG_6370.JPG

This rubber tie stops the tree from falling over, but it then rubs against the tree when the tree bends in the wind and damages the bark. The bark could end up damaged and removed. Depending on how much round the tree the damage could occur, especially when the area where the rubber does not touch the tree has a branch stub and therefore no bark.

Photo 28 - tree 63 from pestana mirimar juvenile tree IMG_6369.JPG

The bottom rubber tie suffers the same problem. See Photos 18 and 19 on this page for valid tree tieying.

Photo 29 - tree 63 from pestana mirimar juvenile tree IMG_6370.JPG

Apparently when in the nursery or after it had been planted, at least 4 branches round the same section of trunk were removed at the same time. Perhaps this was because they wanted this to be planted in the street pavement instead of in a garden, but they should have done this in the nursery after 1 year's of growth to remove branches below 6 feet, then the tree can repair itself before being sold a year later to go into confined area of ground where people would walk round it. This tree is more than 2 years old and the removal of these branches was done too late in its growth. No sealing of the cuts was made to stop the cut areas from rotting. This hole will continue to rot and the tree fall over once the rubber ties are removed and a storm hits it.
Reminds me of Mission Impossible - "this tape will self-destruct in 30 seconds".

Photo 30 - tree 63 from pestana mirimar juvenile tree IMG_6370.JPG

Is this red colour on this bark a problem for the tree?

Photo 31 - tree 63 from pestana mirimar juvenile tree IMG_6369.JPG

This is a new tree installed fairly recently into the ground area normally reserved for street trees in Funchal. Is this tree irrigated?

If this concrete enclosure was extended 100 cms each side parallel to the road with a flat seat supported at its 4 corners with a metal leg on each section of the 2 extended ground enclosure areas and green manure in the open ground, this would feed the tree and prevent pedestrians from walking on the open ground in this new enclosure. The legs closest to the tree would be at least 4 inches (10 cms) from the tree trunk. As the tree grows by 3 inches (7.5 cms) radius, the concrete edged enclosure could be extended by another 4 inches and the seat moved another 4 inches and still keep the open ground either side of this tree protected.

Photo 32 - tree 63 from pestana mirimar juvenile tree IMG_6369.JPG

The earth is exposed so will dry out from the sun and wind. Why not plant a Green manure in there to stop that evaporation and also feed the tree?

newtrees27garnonswilliams



newtrees28garnonswilliams

newtrees29garnonswilliams



newtrees30garnonswilliams

newtrees31garnonswilliams



newtrees32garnonswilliams

Photo 33 - tree 117 from mirimar to funchal pollarded tree by new savoy IMG_0035.JPG

Interesting about the supports - does this mean that the root ball is insuffcient in size to support this tree and it was pollarded because the roots supplied were insufficient for what was the the foliage? or is it the case that we only want foliage between the bottom windows and the top of the railings on the floor above?

newtrees33garnonswilliams



This website is being created by Chris Garnons-Williams of Ivydene Horticultural Services from it's start in 2005.

I am requesting free colour photographs of any plants grown in or sold in the United Kingdom to add to the plants in the Plant Photographic Galleries and Butterfly photographs for the Butterfly on Plant Photographic Galleries.



Site design and content copyright ©April 2007. Page structure amended October 2012. Page structure changed February 2019 for pages concerning Trees in pavements alongside roads in Madeira. Chris Garnons-Williams.

DISCLAIMER: Links to external sites are provided as a courtesy to visitors. Ivydene Horticultural Services are not responsible for the content and/or quality of external web sites linked from this site.

It should be remembered that nothing is sold from this educational site, it simply tries to give you the best advice on what to use and where to get it (About Chris Garnons-Williams page details that no payment or commision to or from any donor of photos or adverts I place on the site in the Useful Data or other sections is made to Chris Garnons-Williams or Ivydene Horticultural Services). This website is a hobby and not for direct commercial gain for Ivydene Horticultural Services. There is no Google Adscenes or Search Facility in this website.

The information on this site is usually Verdana 14pt text and all is in tabular form. This can be downloaded and sorted using WORD or other word-processing software into the order that you personally require, especially for soil subsidence, the Companion Planting Tables and the pages in the Plants section. This would be suitable for use in education as well.

I put jokes in at various places to give you a smile.



Main Menu to Site Map of each of the Topics, with a * after Topic you are viewing.
Topic

Case Studies
...Drive
...Foundations

Companion Planting
...A
, B, C, D, E,
...F, G, H, I, J, K,
...L, M, N, O, P, Q,
...R, S, T, U, V, W,
...X, Y, Z
...Pest Control
...using Plants

Garden Construction
Garden Design
...How to Use the Colour Wheel Concepts for Selection of Flowers, Foliage and Flower Shape
...RHS Mixed Borders
......Bedding Plants
.........with
.........
Flower Shape
......Her Perennials
......and
......Other Plants
.........with
.........Flower Shape
Garden Maintenance
Glossary
Home*
Library
Offbeat Glossary
Plants
...Poisonous Plants

Soil
...Soil Nutrients

Tool Shed
Useful Data


Topic - Plant Photo Galleries

Aquatic
Bamboo
Bedding
...by Flower Shape

Bulb
...Allium/ Anemone
...Autumn Bulb
...Colchicum/ Crocus
...Dahlia
...Gladiolus
...Hippeastrum/ Lily
...Late Summer Bulb
...Narcissus
...Spring Bulb
...Tulip
...Winter
...Each of the above ...Bulb Galleries has its own set of Flower Colour Pages
...Flower Shape
Climber
...Clematis
...Climbers

Colour Wheels with number of Colours
Colour Wheel
...All Flowers 53
...All Flowers per Month 53
...
All Bee-Pollinated Flowers per Month 12
...All Foliage 212
...All Spring Foliage 212
...All Summer Foliage 212
...All Autumn Foliage 212
...All Winter Foliage 212
...Rock Plant Flowers 53


Conifer
Deciduous Shrub
...Shrubs - Deciduous
Deciduous Tree
...Trees - Deciduous
Evergreen Perennial
...P-Evergreen A-L
...P-Evergreen M-Z
...Flower Shape
Evergreen Shrub
...Shrubs - Evergreen
...Heather Shrub
...Heather Index
......Andromeda
......Bruckenthalia
......Calluna
......Daboecia
......Erica: Carnea
......Erica: Cinerea
......Erica: Others
Evergreen Tree
...Trees - Evergreen
Fern
Grass
Hedging
Herbaceous
Perennial

...P -Herbaceous
...Peony
...Flower Shape
...RHS Wisley
......Mixed Border
......Other Borders
Herb
Odds and Sods
Rhododendron
Rose
...RHS Wisley A-F
...RHS Wisley G-R
...RHS Wisley S-Z
...Rose Use
...
Other Roses A-F
...Other Roses G-R
...Other Roses S-Z
Soft Fruit
Top Fruit
...Apple Gallery Intro
...Cherry Gallery Intro
...Pear Gallery Intro
Vegetable
Wild Flower
with its
flower colour page,
space,
Site Map page in its flower colour

NOTE Gallery
...Blue Note
...Brown
Note
...Cream Note
...Green Note
...Mauve Note
...Multi-Cols Note
...Orange Note
...Pink A-G Note
...Pink H-Z Note
...Purple Note
...Red Note
...White A-D Note
...White E-P Note
...White Q-Z Note
...Yellow A-G Note
...Yellow H-Z Note
...Shrub/Tree Note
Poisonous
Wildflower Plants

............

Topic - Flower/Foliage Colour
Colour Wheel Galleries

Following your choice using Garden Style then that changes your Plant Selection Process
Garden Style
...Infill Plants
...12 Bloom Colours per Month Index
...12 Foliage Colours per Month Index
...All Plants Index
...Cultivation, Position, Use Index
...Shape, Form
Index

or
you could use these Flower Colour Wheels with number of colours
All Flowers 53
...Use of Plant and
...Flower Shape

All Flowers per Month 12
with its
Explanation of
Structure of this Website with

...User Guidelines
All Bee-Pollinated Flowers per Month 12
...Index
Rock Garden and Alpine Flower Colour Wheel with number of colours
Rock Plant Flowers 53
...Rock Plant Photos

or
these Foliage Colour Wheels structures, which I have done but until I can take the photos and I am certain of the plant label's validity, these may not progress much further
All Foliage 212
All Spring Foliage 212
All Summer Foliage 212
All Autumn Foliage 212
All Winter Foliage 212

or
Flower Colour Wheel without photos, but with links to photos
12 Bloom Colours per Month Index
...All Plants Index

............




Topic - Wildlife on Plant Photo Gallery

Butterfly
Usage of Plants
by Egg, Caterpillar, Chrysalis and Butterfly

Egg, Caterpillar, Chrysalis and Butterfly usage of
Plant A-C
Plant C-M
Plant N-W
Butterfly usage of Plant

followed by all the Wild Flower Family Pages:-

There are 180 families in the Wildflowers of the UK and they have been split up into 22 Galleries to allow space for up to 100 plants per gallery.

Each plant named in each of the Wildflower Family Pages may have a link to its Plant Description Page in its Common Name in one of those Wildflower Plant Galleries and will have links to external sites to purchase the plant or seed in its Botanical Name, to see photos in its Flowering Months and to read habitat details in its Habitat Column.


57(o)58 Crucifer (Cabbage/ Mustard) 1
indicates 57 Plant Description Pages with photos and 58 plants with photos in that Crucifer Family Page 1:-

Wild Flower

ad borage gallery
...(o)2 Adder's Tongue
...Amaranth
...(o)3 Arrow-Grass
...(o)4 Arum
...1(o)1 Balsam
...Bamboo
...2(o)2 Barberry
...(o)10 Bedstraw
...(o)7 Beech
...(o)12 Bellflower
...(o)5 Bindweed
...(o)4 Birch
...(o)1 Birds-Nest
...(o)1 Birthwort
...(o)2 Bogbean
...(o)1 Bog Myrtle
...(o)23 Borage

box crowberry gallery
...1(o)1 Box
...(o)11 Broomrape
...2(o)2 Buckthorn
...(o)1 Buddleia
...(o)1 Bur-reed
...29(o)30 Buttercup
...(o)6 Butterwort
...6(o)6 Clubmoss
...(o)2 Cornel (Dogwood)
...(o)1 Crowberry

cabbages gallery
...57(o)58 Crucifer (Cabbage/ Mustard) 1
...(o)Crucifer (Cabbage/Mustard) 2

cypress cud gallery
...Cypress
...(o)4 Daffodil
...(o)23 Daisy
...(o)21 Daisy Cudweeds
...(o)16 Daisy Chamomiles
...3(o)22 Daisy Thistle
...(o)17 Daisy Catsears

hawk dock gallery
...(o)5 Daisy Hawkweeds
...(o)5 Daisy Hawksbeards
...(o)2 Daphne
...(o)1 Diapensia
...(o)10 Dock Bistorts
...(o)7 Dock Sorrels

duckw fern gallery
...(o)4 Duckweed
...(o)1 Eel-Grass
...(o)2 Elm

figwort fum gallery
...(o)24 Figwort - Mulleins
...(o)21 Figwort - Speedwells
...2(o)2 Filmy Fern
...(o)4 Flax
...(o)1 Flowering-Rush
...(o)3 Frog-bit
...7(o)7 Fumitory

g goosefoot gallery
...1(o)10 Gentian
...(o)16 Geranium
...(o)4 Glassworts
...(o)2 Gooseberry
...(o)13 Goosefoot

grasses123 gallery
...(o)8 Grass 1
...(o)8 Grass 2
...(o)8 Grass 3

g brome gallery
...(o)8 Soft Bromes 1
...(o)8 Soft Bromes 2
...(o)9 Soft Bromes 3

h lobelia gallery
...(o)2 Hazel
...(o)15 Heath
...(o)1 Hemp
...(o)1 Herb-Paris
...(o)1 Holly
...(o)7 Honeysuckle
...(o)1 Horned-Pondweed
...2(o)2 Hornwort
...5(o)5 Horsetail
...(o)9 Iris
...(o)1 Ivy
...(o)1 Jacobs Ladder
...(o)17 Lily
...(o)7 Lily Garlic
...(o)2 Lime
...(o)2 Lobelia

l olive gallery
...(o)1 Loosestrife
...(o)5 Mallow
...(o)4 Maple
...(o)1 Mares-tail
...(o)1 Marsh Pennywort
...1(o)1 Melon (Gourd/ Cucumber)
...(o)2 Mesembry-anthemum
...3(o)3 Mignonette
...3(o)3 Milkwort
...(o)1 Mistletoe
...(o)1 Moschatel
...Naiad
...4(o)4 Nettle
...(o)7 Nightshade
...(o)1 Oleaster
...(o)3 Olive

orchid parn gallery
...(o)22 Orchid 1
...(o)22 Orchid 2

peaflowers gallery
...(o)20 Peaflower
...(o)31 Peaflower Clover
...(o)18 Peaflower Vetches/Peas
...(o)1 Parnassus-Grass

peony pink gallery
...Peony
...(o)1 Periwinkle
...Pillwort
...Pine
...7(o)23 Pink 1
...7(o)24 Pink 2

p rockrose gallery
...Pipewort
...(o)1 Pitcher-Plant
...(o)6 Plantain
...26(o)27 Polypody
...(o)4 Pondweed
...8(o)8 Poppy
...16(o)16 Primrose
...3(o)3 Purslane
...Quillwort
...Rannock Rush
...2(o)2 Reedmace
...4(o)4 Rockrose

rose12 gallery
...(o)30 Rose 1
...(o)23 Rose 2
...1(o)1 Royal Fern

rush saxi gallery
...(o)1 Rush
...(o)1 Rush Woodrushes
...9(o)9 Saint Johns Wort
...Saltmarsh Grasses
...(o)1 Sandalwood
...(o)1 Saxifrage

sea sedge2 gallery
...Seaheath
...1(o)3 Sea Lavender
...(o)2 Sedge Rush-like
...(o)1 Sedges Carex 1
...1(o)1 Sedges Carex 2

sedge3 crop gallery
...(o)1 Sedges Carex 3
...(o)1 Sedges Carex 4
...(o)1 Spindle-Tree
...(o)13 Spurge
...(o)1 Stonecrop

sun thyme gallery
...(o)1 Sundew
...1(o)1 Tamarisk
...Tassel Pondweed
...(o)4 Teasel
...(o)20 Thyme 1
...(o)21 Thyme 2

umb violet gallery
...15(o)15 Umbellifer 1
...15(o)15 Umbellifer 2
...(o)5 Valerian
...(o)1 Verbena
...11(o)11 Violet

water yew gallery
...1(o)1 Water Fern
...2(o)2 Waterlily
...1(o)1 Water Milfoil
...1(o)1 Water Plantain
...2(o)2 Water Starwort
...Waterwort
...(o)9 Willow
...(o)1 Willow-Herb
...(o)5 Wintergreen
...(o)1 Wood-Sorrel
...Yam
...Yew

The Site Map Page that you link to from the Menu in the above row for the Wildflower Gallery contains all the native UK plants which have their Plant Description Pages in the other 22 Wildflower Galleries. It also has Wildflower Index Pages, Flower Colour Comparison Pages and links to the 180 Wildflower Family Pages as shown in the menu above.






Links to external websites like the link to "the Man walking in front of car to warn pedestrians of a horseless vehicle approaching" would be correct when I inserted it after March 2007, but it is possible that those horseless vehicles may now exceed the walking pace of that man and thus that link will currently be br
ok en .... .....

My advice is Google the name on the link and see if you can find the new link. If you sent me an email after clicking Ivydene Horticultural Services text under the Worm Logo on any page, then; as the first after March 2010 you would be the third emailer since 2007, I could then change that link in that 1 of the 15,743 pages. Currently (August 2016), I can receive but not send emails, so please provide phone number/country or full postal address if reply required.




Other websites provide you with cookies - I am sorry but I am too poor to afford them. If I save the pennies from my pension for the next visitor, I am almost certain in March 2023, that I could afford to make that 4th visitor to this website a Never Fail Cake. I would then be able to save for more years for the postage.



It is worth remembering that especially with roses that the colour of the petals of the flower may change - The following photos are of Rosa 'Lincolnshire Poacher' which I took on the same day in R.V. Roger's Nursery Field:-

rosalincolnshirepoacherflot91a1a1a

Closed Bud

rosalincolnshirepoacherflot92a1a1a

Opening Bud

rosalincolnshirepoacherflot93a1a1a

Juvenile Flower

rosalincolnshirepoacherflot94a1a1a

Older Juvenile Flower

rosalincolnshirepoacherflot95a1a1a

Middle-aged Flower - Flower Colour in Season in its
Rose Description Page is
"Buff Yellow, with a very slight pink tint at the edges in May-October."

rosalincolnshirepoacherflot96a1a1a

Mature Flower

rosalincolnshirepoacherflot97a1a1a

Juvenile Flower and Dying Flower

rosalincolnshirepoacherflot98a1a1a

Form of Rose Bush

There are 720 roses in the Rose Galleries; many of which have the above series of pictures in their respective Rose Description Page.

So one might avoid the disappointment that the 2 elephants had when their trunks were entwined instead of them each carrying their trunk using their own trunk, and your disappointment of buying a rose to discover that the colour you bought it for is only the case when it has its juvenile flowers; if you look at all the photos of the roses in the respective Rose Description Page!!!!



Fragrant Plants adds the use of another of your 5 senses in your garden:-

Sense of Fragrance from Roy Genders

Fragrant Plants:-
Trees and Shrubs with Scented Flowers.

Trees and Shrubs with Scented Leaves.

Trees and Shrubs with Aromatic Bark.

Shrubs bearing Scented Flowers for an
Acid Soil
.

Shrubs bearing Scented Flowers for a
Chalky or Limestone Soi
l.

Shrubs bearing Scented leaves for a
Sandy Soil
.

Herbaceous Plants with Scented Flowers.

Herbaceous Plants with Scented Leaves.

Annual and Biennial Plants with Scented Flowers or Leaves.

Bulbs and Corms with Scented Flowers.

Scented Plants of Climbing and Trailing Habit.

Winter-flowering Plants with Scented Flowers.

Night-scented Flowering Plants.

Scented Aquatic Plants.

Plants with Scented Fruits.

Plants with Scented Roots.

Trees and Shrubs with Scented Wood.

Trees and Shrubs with Scented Gums.

Scented Cacti and Succulents.

Plants bearing Flowers or Leaves of Unpleasant Smell.
