Mr Manderson of Manderson Electrical Services Ltd was employed to rewire our home, due to rodents eating our cables.
Mr Manderson is a Part P Registered Electrician with Napit; Registered Competent Person Electrical; Approved Electrician from Napit; City & Guilds Qualified; Part P Electrical
Safety; and Honest & Transparent.
His firm was employed to replace all the wiring, power sockets, light switches and lights and make sure that rodents could not attack them to chew through the cables or cause an
electrical problem.

We wrote the following on the 21.03.2021:-

"Questions concerning electrics

  • A. There are cables in the cloakroom with no obvious protection at the moment. We are not clear where they go and if they are protected from ceiling upwards. See photos
    10, 11, 28, 29, 31, 125 and 126. Photo 141 shows the bottom landing at the top of the stairs from the ground floor to the bedroom floor. It then shows the middle landing,
    the step up to the landing outside the dormer bedroom at the top of the picture. There is another step to the left to the stairs from the bedroom landing to the library/ study/ tank
    room of the top storey. When the carpet is removed and floor-boarding removed of the middle landing as shown in photos 145 and 146 one sees unprotected new data wire
    and grey cables in photo 145, these unprotected grey wires continue on to photo 146 and are under a coiled bundle of grey wire and data cable as shown in photo 147. This
    wire bundle continues to the kitchen as shown in photos 16, 17, 18, 37, 38, 39, 95, 96, 97, 98, 99, 100 and 101. Photo 102 shows the view from the kitchen along the hall to
    the front door, passing the lounge door on the right and the cellar door on the left, then the stairs to the bedroom floor on the left with the door to the dining room on the left
    before coming to the door to the left for the cloakroom where the old fuse box is and new fuse box 1, and then finally to the front door. This bundle of new cables in photo
    145 continues towards the front door and might be partly protected between photo 145 of the middle landing and when it comes out into the cloakroom. Are all these cables
    trunked? Photos 50-55 attempt to show what is inside this new ceiling space. There are 2 new data cables coming out of metal codex trunking, they are taped together, then they
    split up and each wire goes into another metal codex trunking, but between these 3 bits of codex trunking these 2 data cables are unprotected.
    When you look at photo 151 you will notice 3 cables have been laid over the top of the joist on the left hand side by chiselling a channel in the top of that joist, The bundle of new
    grey wires has been put through a new hole bored in the same joist. Where the original floorboard of the old step under these new joists were installed perhaps in 1984, there is
    a missing floorboard. The 2 sets of wire put into the joist and weakening it could both have been put into this missing floorboard hole. Has this weakened the landing so that a heavy
    person going down the stairs could break this joist?
  • B. The new acoustic wall see photo 132 in the dining room sounds hollow and may not be insulated, which we had requested.
  • C. There is a wire in the ceiling for a pendant light in the dining room; no evidence that it is encased in codex when it is wiggled see photo 133, so is the rest of the wiring in that ceiling
    trunked?
  • D. There are holes in the dining room wall below the new ceiling (installed because the old ceiling was old lath and plaster). The wires in the holes are not protected - see photos 40-47.
  • E. An extension cable is plugged into a power socket in the hall. This goes into the front bedroom from the stairs and is joined to a grey wire installed by the electricians and is
    connected to the new fuse box 2 in the wardrobe. The whole of the power supply for the attic and first floor including all lights and sockets and the hot water timer etc all seem to rely
    on this one extension cable. Is this load safe?
  • F. Are they on the same circuit as the lead from the power socket in the cloakroom to be the supply to new fuse box 1 (See photo 28) which we were told supplies power to the cellar,
    dining room and hall? If those 2 power sockets in the old wiring are on the same MCB in the old fuse board, is that safe?
  • G. There is wire from the new fuse box in the cloakroom going through a hole in the wall, but they do not seem to go into the second fuse box, so where do they go? To the kitchen and the
    rest of the ground floor and cellar?
  • H. Is the power and lighting for Chris’s study and the ironing room on the old circuit and fuse box?
  • I. Looking at photos 156, 157 and 158 at the 4 light dimmer switches beside the entry door and inside the lounge we find that the wires are blue, red, green/yellow (is the green/yellow
    the covering of the wire or trunking?) does this mean that the live of the old fusebox has been put with the neutral of the new system? If so, is it unsafe to mix 2 electrical systems
    together for a potential 4 separate light system of which 2 circuits have been installed and are working?
The Conductor Colours of current IEC is green/yellow for protective earth, blue for neutral and brown for single phase live.Three Phase live is brown for L1, black for L2 and grey for
    L3. “Household wiring does not usually use three-phase supplies and the clash only occurs in three-phase systems. Wiring to the old standard can be detected by use of a red wire.
    The new standard colour code does not use red. Where new wiring is mixed with old, cables must be clearly marked to prevent interchange of phase and neutral.” from
    https://en.wikipedia. org/wiki/ Electrical_wiring_ in_the_United_Kingdom.
  • J. Is it usually safe to mix single phase wiring with three-phase wiring and connect both to Pre-2004 IEE Wired fuseboard? Unless we look at the conductor colours on each switch,
    light and power socket fitted, we will not now whether it is the old wiring, new single phase or new three-phase?
  • K. A new double power socket was installed in the back bedroom between the windows and the bedroom cupboard. The old power socket was taken out, the old wires to it cut off and
    then when the electrical work was completed in that room for the ceiling lights and power sockets, leaving the wall light wires exposed through the newly created insulation? Wall, the
    insulation wall was plastered, the new rectangular section of plasterboard in the ceiling from one end to the other covering where they had cut out that section to put the new wiring in
    and the holes where the old power sockets was plastered. The power for the power sockets in Chris’s study went off. I was told by the plasterer that once the plaster had dried then it
    would be okay within 30 minutes. 4 hours later the electricity to the study was still not on.
    The electricians fiddled and the power came back on. When you look at photo 28, there is a white strip over a circuit breaker on the old fuse board and that fuse is off. Why? Is it safe
    to apply wet plaster to live ends of wire?
    If you look at photos 138-140 there is a wire that comes out of the bottom hole and up to the second hole where it is bent into the hole and pushed down. When you pull it out, its end is
    unprotected. In the second hole is a cut wire with red and black conductor colours. Is that old wire still connected to the old fuse box and live? And it has a new wire which could be
    live pushed past it, which is in contact between its grey external cover. Is this safe?
  • L. If you look at photo 31, you will see an unprotected cable coming from the new fuse board 1 up to the metal codex in the ceiling and another unprotected cable coming from
    that same codex to join the bundle of wires in the hole on the left. 3 other unprotected cables come out above of new fusebox number 1 loop over and into the area screened by the
    plywood and loop up to join the bundle of wires in the hole on the left. Are these the 3 cables that go to the kitchen? What are the 5 cables coming down from the hole connected to, since
    they are not connected to either fuse board or power socket in the room - are they 5 red herrings?
  • M. If you look at photo 28, then there is writing under each of the MCB’s to indicate what circuit that fuses. There are no markings on the new fuse board 1. Is that safe so that if
    an mcb blows that we will not know where the problem is? Is that why when the electricians came to take their tools away on Saturday 20 March at 8:30am, that they wanted to put the
    cover on this fusebox number 1, so that we would not know what each fuse serviced because there was nothing to tell the client?
  • N. From the above, we do know if there has been more than 2 re-uses of old wire in the new wiring and looking at the dimmer switches in the lounge, that if the old fuse box is
    disconnected, then there will be no live wires to that circuit. Is there any safe new wiring in the house and is the old wire left in a safe condition instead of simply being cut off?

    The above is repeated below with its relevant photos:-



Text for this row



Photo taken by Chris Garnons-Williams In 1 Eastmoor Farm Cottages.




Photo taken by Chris Garnons-Williams In 1 Eastmoor Farm Cottages.




Photo taken by Chris Garnons-Williams In 1 Eastmoor Farm Cottages.



  • A. There are cables in the cloakroom with no obvious protection at the moment. We are not clear where they go and if they are protected from ceiling upwards. See photos
    10, 11, 28, 29, 31, 125 and 126.
    .
    .
    .
    Photo 141 shows the bottom landing at the top of the stairs from the ground floor to the bedroom floor. It then shows the middle landing,
    the step up to the landing outside the dormer bedroom at the top of the picture. There is another step to the left to the stairs from the bedroom landing to the library/ study/ tank
    room of the top storey. When the carpet is removed and floor-boarding removed of the middle landing as shown in photos 145 and 146 one sees unprotected new data wire
    and grey cables in photo 145, these unprotected grey wires continue on to photo 146 and are under a coiled bundle of grey wire and data cable as shown in photo 147.
    .
    .
    .

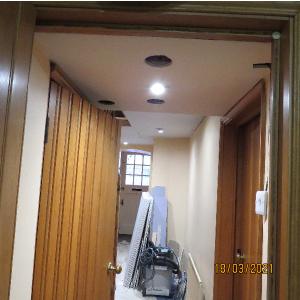

    This wire bundle continues to the kitchen as shown in photos 16, 17, 18, 37, 38, 39, 95, 96, 97, 98, 99, 100 and 101. Photo 102 shows the view from the kitchen along the hall to
    the front door, passing the lounge door on the right and the cellar door on the left, then the stairs to the bedroom floor on the left with the door to the dining room on the left
    before coming to the door to the left for the cloakroom where the old fuse box is and new fuse box 1, and then finally to the front door.
    .
    .
    .
    This bundle of new cables in photo
    145 continues towards the front door and might be partly protected between photo 145 of the middle landing and when it comes out into the cloakroom. Are all these cables
    trunked?
    .
    .
    .
    Photos 50-55 attempt to show what is inside this new ceiling space. There are 2 new data cables coming out of metal codex trunking, they are taped together, then they
    split up and each wire goes into another metal codex trunking, but between these 3 bits of codex trunking these 2 data cables are unprotected.
    .
    .
    .
    When you look at photo 151 you will notice 3 cables have been laid over the top of the joist on the left hand side by chiselling a channel in the top of that joist, The bundle of new
    grey wires has been put through a new hole bored in the same joist. Where the original floorboard of the old step under these new joists were installed perhaps in 1984, there is a missing floorboard. The 2 sets of wire put into the joist and weakening it could both have been put into this missing floorboard hole. Has this weakened the landing so that a heavy
    person going down the stairs could break this joist?

IMG0010web

Photo 10

IMG0011web

Photo 11

IMG0028web1

Photo 28

The fusebox on the left on a piece of new plywood is a new fuseboard 1 put in by Manderson Electrical Services Ltd.

The top left hand grey box and the 2 grey boxes one on top of the other on the right hand side are the current old fuseboxes installed in 1987.

The 2 smaller fuseboxes below the top left hand grey box on the right hand side are separate fuseboxes for the garage and workshop (pigsty storage area) originally installed by me and amended by a qualified electrician who came to check my wiring.

It is noted that the new Fuseboard 1 is not connected to the main electrical circuit from the main supply to the house, but is connected to a power cable to a 13 amp socket, which leads to a MCB on one of the 3 old fuseboards. This means that the new lights and power sockets which have been connected to new wiring which goes to the new fuseboard 1 are fed by a 13 amp socket for the cloakroom, hall, dining room, cellar and lounge.

IMG0029web

Photo 29

IMG0031web

Photo 31

IMG0125web

Photo 125

IMG0126web

Photo 126

IMG0141web

Photo 141

Photo 141 shows the bottom landing at the top of the stairs from the ground floor to the bedroom floor. It then shows the middle landing,
the step up to the landing outside the dormer bedroom at the top of the picture. There is another step to the left to the stairs from the bedroom landing to the library/ study/ tank
room of the top storey. When the carpet is removed and floor-boarding removed of the middle landing as shown in photos 145 and 146 one sees unprotected new data wire
and grey cables in photo 145, these unprotected grey wires continue on to photo 146 and are under a coiled bundle of grey wire and data cable as shown in photo 147.

IMG0145web

Photo 145

This bundle of new cables in photo
145 continues towards the front door and might be partly protected between photo 145 of the middle landing and when it comes out into the cloakroom. Are all these cables
trunked?

IMG0146web

Photo 146

IMG0147web

Photo 147

IMG0016web

Photo 16

This wire bundle continues to the kitchen as shown in photos 16, 17, 18, 37, 38, 39, 95, 96, 97, 98, 99, 100 and 101. Photo 102 shows the view from the kitchen along the hall to
the front door, passing the lounge door on the right and the cellar door on the left, then the stairs to the bedroom floor on the left with the door to the dining room on the left
before coming to the door to the left for the cloakroom where the old fuse box is and new fuse box 1, and then finally to the front door.

IMG0017web

Photo 17

IMG0018web

Photo 18

IMG0037web

Photo 37

IMG0038web

Photo 38

IMG0039web

Photo 39

IMG0095web

Photo 95

IMG0096web

Photo 96

IMG0097web

Photo 97

IMG0098web

Photo 98

IMG0099web

Photo 99

IMG0100web

Photo 100

IMG0101web

Photo 101

IMG0102web

Photo 102

IMG0050web

Photo 50

Photos 50-55 attempt to show what is inside this new ceiling space. There are 2 new data cables coming out of metal codex trunking, they are taped together, then they
split up and each wire goes into another metal codex trunking, but between these 3 bits of codex trunking these 2 data cables are unprotected.

IMG0051web

Photo 51

IMG0052web

Photo 52

IMG0053web

Photo 53

IMG0054web

Photo 54

IMG0055web

Photo 55

IMG0151web

Photo 151

When you look at photo 151 you will notice 3 cables have been laid over the top of the joist on the left hand side by chiselling a channel in the top of that joist, The bundle of new grey wires has been put through a new hole bored in the same joist. Where the original floorboard of the old step under these new joists were installed perhaps in 1984, there is a missing floorboard. The 2 sets of wire put into the joist and weakening it could both have been put into this missing floorboard hole. Has this weakened the landing so that a heavy person going down the stairs could break this joist?





IMG0132web

Photo 132

B. The new acoustic wall see photo 132 in the dining room sounds hollow and may not be insulated, which we had requested.

IMG0133web

Photo 133

C. There is a wire in the ceiling for a pendant light in the dining room; no evidence that it is encased in codex when it is wiggled see photo 133, so is the rest of the wiring in that ceiling
trunked?



  • D. There are holes in the dining room wall below the new ceiling (installed because the old ceiling was old lath and plaster). The wires in the holes are not protected - see photos 40-47.

IMG0040web

Photo 40

Strange - this is the same lath and plaster system as used in the ceiling, but Manderson Electrical Services Ltd had no problem with making lots of holes through it, when they worried about anthrax from the ceiling of the same construction!!! Milk the client?

IMG0041web

Photo 41

IMG0042web

Photo 42

IMG0043web

Photo 43

IMG0044web

Photo 44

IMG0045web

Photo 45

IMG0046web

Photo 46

IMG0047web

Photo 47



  • E. An extension cable is plugged into a power socket in the hall. This goes into the front bedroom from the stairs and is joined to a grey wire installed by the electricians and is
    connected to the new fuse box 2 in the wardrobe. The whole of the power supply for the attic and first floor including all lights and sockets and the hot water timer etc all seem to rely
    on this one extension cable. Is this load safe?
  • F. Are they on the same circuit as the lead from the power socket in the cloakroom to be the supply to new fuse box 1 (See photo 28) which we were told supplies power to the cellar,
    dining room and hall? If those 2 power sockets in the old wiring are on the same MCB in the old fuse board, is that safe?
  • G. There is wire from the new fuse box in the cloakroom going through a hole in the wall, but they do not seem to go into the second fuse box, so where do they go? To the kitchen and the
    rest of the ground floor and cellar?
  • H. Is the power and lighting for Chris’s study and the ironing room on the old circuit and fuse box? According to the conditioning checking electricians, the old ring main from the old fusebox system had gone to my study and then to 1 power socket in the lounge as a single cable and no longer as a ring main. It was attached to a 32amp MCB and because it was no longer a ring main, it was dangerous since the time taken for the MCB to fail might exceed the time taken to shock the person receiving the electricity, so they made the line safer.
  • I. Looking at photos 156, 157 and 158 at the 4 light dimmer switches beside the entry door and inside the lounge we find that the wires are blue, red, green/yellow (is the green/yellow
    the covering of the wire or trunking?) does this mean that the live of the old fusebox has been put with the neutral of the new system? If so, is it unsafe to mix 2 electrical systems
    together for a potential 4 separate light system of which 2 circuits have been installed and are working?
The Conductor Colours of current IEC is green/yellow for protective earth, blue for neutral and brown for single phase live.Three Phase live is brown for L1, black for L2 and grey for L3. “Household wiring does not usually use three-phase supplies and the clash only occurs in three-phase systems. Wiring to the old standard can be detected by use of a red wire.
    The new standard colour code does not use red. Where new wiring is mixed with old, cables must be clearly marked to prevent interchange of phase and neutral.” from
    https://en. wikipedia. org/wiki/ Electrical_wiring_ in_the_United_ Kingdom.
  • J. Is it usually safe to mix single phase wiring with three-phase wiring and connect both to Pre-2004 IEE Wired fuseboard? Unless we look at the conductor colours on each switch,
    light and power socket fitted, we will not now whether it is the old wiring, new single phase or new three-phase?
  • K. A new double power socket was installed in the back bedroom between the windows and the bedroom cupboard. The old power socket was taken out, the old wires to it cut off and
    then when the electrical work was completed in that room for the ceiling lights and power sockets, leaving the wall light wires exposed through the newly created insulation? Wall, the
    insulation wall was plastered, the new rectangular section of plasterboard in the ceiling from one end to the other covering where they had cut out that section to put the new wiring in
    and the holes where the old power sockets was plastered. The power for the power sockets in Chris’s study went off. I was told by the plasterer that once the plaster had dried then it
    would be okay within 30 minutes. 4 hours later the electricity to the study was still not on.
    The electricians fiddled and the power came back on. When you look at photo 28, there is a white strip over a circuit breaker on the old fuse board and that fuse is off. Why? Is it safe
    to apply wet plaster to live ends of wire?
    If you look at photos 138-140 there is a wire that comes out of the bottom hole and up to the second hole where it is bent into the hole and pushed down. When you pull it out, its end is
    unprotected. In the second hole is a cut wire with red and black conductor colours. Is that old wire still connected to the old fuse box and live? And it has a new wire which could be
    live pushed past it, which is in contact between its grey external cover. Is this safe?
  • L. If you look at photo 31, you will see an unprotected cable coming from the new fuse board 1 up to the metal codex in the ceiling and another unprotected cable coming from
    that same codex to join the bundle of wires in the hole on the left. 3 other unprotected cables come out above of new fusebox number 1 loop over and into the area screened by the
    plywood and loop up to join the bundle of wires in the hole on the left. Are these the 3 cables that go to the kitchen? What are the 5 cables coming down from the hole connected to, since
    they are not connected to either fuse board or power socket in the room - are they 5 red herrings?
  • M. If you look at photo 28, then there is writing under each of the MCB’s to indicate what circuit that fuses. There are no markings on the new fuse board 1. Is that safe so that if
    an mcb blows that we will not know where the problem is? Is that why when the electricians came to take their tools away on Saturday 20 March at 8:30am, that they wanted to put the
    cover on this fusebox number 1, so that we would not know what each fuse serviced because there was nothing to tell the client?
  • N. From the above, we do know if there has been more than 2 re-uses of old wire in the new wiring and looking at the dimmer switches in the lounge, that if the old fuse box is
    disconnected, then there will be no live wires to that circuit. Is there any safe new wiring in the house and is the old wire left in a safe condition instead of simply being cut off?

IMG0028web1a

Photo 28

IMG0156web

Photo 156

I. Looking at photos 156, 157 and 158 at the 4 light dimmer switches beside the entry door and inside the lounge we find that the wires are blue, red, green/yellow (is the green/yellow
the covering of the wire or trunking?) does this mean that the live of the old fusebox has been put with the neutral of the new system? If so, is it unsafe to mix 2 electrical systems
together for a potential 4 separate light system of which 2 circuits have been installed and are working?
The Conductor Colours of current IEC is green/yellow for protective earth, blue for neutral and brown for single phase live.Three Phase live is brown for L1, black for L2 and grey for L3. “Household wiring does not usually use three-phase supplies and the clash only occurs in three-phase systems. Wiring to the old standard can be detected by use of a red wire.
The new standard colour code does not use red. Where new wiring is mixed with old, cables must be clearly marked to prevent interchange of phase and neutral.” from
https://en. wikipedia. org/wiki/ Electrical_wiring_ in_the_United_ Kingdom.

IMG0156web2

Detail of photo 156 showing red cable.

IMG0157web

Photo 157

IMG0158web

Photo 158

IMG0028web4

Photo 28

J. Is it usually safe to mix single phase wiring with three-phase wiring and connect both to Pre-2004 IEE Wired fuseboard? Unless we look at the conductor colours on each switch, light and power socket fitted, we will not now whether it is the old wiring, new single phase or new three-phase?

K. A new double power socket was installed in the back bedroom between the windows and the bedroom cupboard. The old power socket was taken out, the old wires to it cut off and then when the electrical work was completed in that room for the ceiling lights and power sockets, leaving the wall light wires exposed through the newly created insulation? Wall, the insulation wall was plastered, the new rectangular section of plasterboard in the ceiling from one end to the other covering where they had cut out that section to put the new wiring in and the holes where the old power sockets was plastered. The power for the power sockets in Chris’s study went off. I was told by the plasterer that once the plaster had dried then it would be okay within 30 minutes. 4 hours later the electricity to the study was still not on.
The electricians fiddled and the power came back on. When you look at photo 28, there is a white strip over a circuit breaker on the old fuse board and that fuse is off. Why? Is it safe to apply wet plaster to live ends of wire?
If you look at photos 138-140 there is a wire that comes out of the bottom hole and up to the second hole where it is bent into the hole and pushed down. When you pull it out, its end is unprotected. In the second hole is a cut wire with red and black conductor colours. Is that old wire still connected to the old fuse box and live? And it has a new wire which could be live pushed past it, which is in contact between its grey external cover. Is this safe?

IMG0138web

Photo 138

IMG0139web

Photo 139

IMG0140web

Photo 140

IMG0031web1

Photo 31

L. If you look at photo 31, you will see an unprotected cable coming from the new fuse board 1 up to the metal codex in the ceiling and another unprotected cable coming from
that same codex to join the bundle of wires in the hole on the left. 3 other unprotected cables come out above of new fusebox number 1 loop over and into the area screened by the
plywood and loop up to join the bundle of wires in the hole on the left. Are these the 3 cables that go to the kitchen? What are the 5 cables coming down from the hole connected to, since
they are not connected to either fuse board or power socket in the room - are they 5 red herrings?

IMG0028web2

Photo 28 of 1 of the old fuseboxes

M. If you look at photo 28, then there is writing under each of the MCB’s to indicate what circuit that fuses. There are no markings on the new fuse board 1. Is that safe so that if
an mcb blows that we will not know where the problem is? Is that why when the electricians came to take their tools away on Saturday 20 March at 8:30am, that they wanted to put the cover on this fusebox number 1, so that we would not know what each fuse serviced because there was nothing to tell the client?

N. From the above, we do know if there has been more than 2 re-uses of old wire in the new wiring and looking at the dimmer switches in the lounge, that if the old fuse box is
disconnected, then there will be no live wires to that circuit. Is there any safe new wiring in the house and is the old wire left in a safe condition instead of simply being cut off?

IMG0028web3

Photo 28 of new Fusebox 1 installed by Manderson Electrical Services Ltd.
The electrical condition checking engineers brought and put the 2 newcovers over this exposed board, when they did the inspection.











This website is being created by Chris Garnons-Williams of Ivydene Horticultural Services from it's start in 2005.

I am requesting free colour photographs of any plants grown in or sold in the United Kingdom to add to the plants in the Plant Photographic Galleries and Butterfly photographs for the Butterfly on Plant Photographic Galleries.



Site design and content copyright ©April 2007. Page structure amended October 2012. Page structure changed February 2019 for pages concerning Trees in pavements alongside roads in Madeira. Chris Garnons-Williams.

DISCLAIMER: Links to external sites are provided as a courtesy to visitors. Ivydene Horticultural Services are not responsible for the content and/or quality of external web sites linked from this site.

It should be remembered that nothing is sold from this educational site, it simply tries to give you the best advice on what to use and where to get it (About Chris Garnons-Williams page details that no payment or commision to or from any donor of photos or adverts I place on the site in the Useful Data or other sections is made to Chris Garnons-Williams or Ivydene Horticultural Services). This website is a hobby and not for direct commercial gain for Ivydene Horticultural Services. There is no Google Adscenes or Search Facility in this website.

The information on this site is usually Verdana 14pt text (from December 2023, this is being changed from 14pt to 10pt) and all is in tabular form. This can be downloaded and sorted using WORD or other word-processing software into the order that you personally require, especially for soil subsidence, the Companion Planting Tables and the pages in the Plants section. This would be suitable for use in education as well.

I put jokes in at various places to give you a smile.



Main Menu to Site Map of each Topic.
The
Topic Table normally in this position (but sometimes moved to the right hand side of the page) has the SAME CONTENTS in the SAME ORDER for every one of the remaining 9762 pages in the 212 Topic folders.

Plants detailed in this website by
Botanical Name

A, B, C, D, E, F, G,
H, I, J, K, L, M, N,
O, P, Q, R, S, T, U,
V, W, X, Y, Z ,
Bulb
A1, 2, 3, B, C1, 2,
D, E, F, G, Glad,
H, I, J, K, L1, 2,
M, N, O, P, Q, R,
S, T, U, V, W, XYZ
Evergreen Perennial
A, B, C, D, E, F, G,
H, I, J, K, L, M, N,
O, P, Q, R, S, T, U,
V, W, X, Y, Z
Herbaceous Perennial
A1, 2, B, C, D, E, F,
G, H, I, J, K, L, M,
N, O, P1, 2, Q, R,
S, T, U, V, W, XYZ,
Diascia Photo Album,
UK Peony Index
Wildflower
Botanical Names
Common Names
will be compared in:-
Flower colour/month

Evergreen Perennial
Flower Shape
Wildflower Flower Shape
and Plant Use
Evergreen Perennial Flower Shape,
Bee plants for hay-fever sufferers
Bee-Pollinated Index
Butterfly
Egg, Caterpillar, Chrysalis and Butterfly Usage
of Plants.
Chalk
A, B, C, D, E, F, G,
H, I, J, K, L, M, N,
O, P, QR, S, T, UV,
WXYZ
Companion Planting
A ,B ,C ,D ,E ,F ,G ,
H ,I ,J ,K ,L ,M ,N ,
O ,P ,Q ,R ,S ,T ,
U ,V ,W , X, Y, Z
Pest Control using Plants
Fern
Fern
1000 Ground Cover
A, B, C, D, E, F, G,
H
, I, J, K, L, M, N,
O
, P, Q, R, S, T, U,
V
, W, XYZ
Rock Garden and Alpine Flowers
Rock Plant Flowers
Rose
Rose Use
These 5 have Page links in rows below
Bulbs from the Infill Galleries (next row),
Camera Photos A 1,
Plant Colour Wheel Uses,
Sense of Fragrance,
Wild Flower

Case Studies
...Drive Foundations
Ryegrass and turf kills plants within Roadstone and in Topsoil due to it starving and dehydrating them.
CEDAdrive creates stable drive surface and drains rain into your ground, rather than onto the public road.
8 problems caused by building house on clay or with house-wall attached to clay.
Pre-building
work on polluted soil.

Companion Planting
to provide a Companion Plant to aid your selected plant or deter its pests

Garden
Construction

with ground drains

Garden Design
...How to Use the Colour Wheel Concepts for Selection of Flowers, Foliage and Flower Shape
...RHS Mixed
Borders

......Bedding Plants
......Her Perennials
......Other Plants
........
Flower Shape
......
Camera photos of Plant supports
Garden
Maintenance

Glossary with a tomato teaching cauliflowers
Home
Library of over 1000 books
Offbeat Glossary with DuLally Bird in its flower clock.

Plants
...in
Chalk (Alkaline) Soil A-F1, A-F2,
A-F3, G-L, M-R,
M-R Roses, S-Z
...in
Heavy Clay Soil
A-F, G-L, M-R, S-Z
...in
Lime-Free (Acid) Soil A-F, G-L, M-R,
S-Z
...
in Light Sand Soil
A-F, G-L, M-R, S-Z.
...Poisonous Plants.
...Extra Plant Pages
with its 6 Plant Selection Levels

Soil
...
Interaction between 2 Quartz Sand Grains to make soil
...
How roots of plants are in control in the soil
...
Without replacing Soil Nutrients, the soil will break up to only clay, sand or silt
...
Subsidence caused by water in Clay
...
Use water ring for trees/shrubs for first 2 years.

Tool Shed with 3 kneeling pads
Useful Data with benefits of Seaweed

Topic -
Plant Photo Galleries

If the plant type below has flowers, then the first gallery will include the flower thumbnail in each month of 1 of 6 or 7 flower colour comparison pages of each plant in its subsidiary galleries, as a low-level Plant Selection Process
Aquatic
Bamboo
Bedding
...by Flower Shape


Bulb
...Allium/ Anemone
...Autumn
...Colchicum/ Crocus
...Dahlia
...Gladiolus with its 40 Flower Colours
......European A-E
......European F-M
......European N-Z
......European Non-classified
......American A,
B, C, D, E, F, G,
H, I, J, K, L, M,
N, O, P, Q, R, S,
T, U, V, W, XYZ
......American Non-classified
......Australia - empty
......India
......Lithuania
...Hippeastrum/ Lily
...Late Summer
...Narcissus
...Spring
...Tulip
...Winter
...
Each of the above ...Bulb Galleries has its own set of Flower Colour Pages
...Flower Shape
...Bulb Form

...Bulb Use

...Bulb in Soil


Further details on bulbs from the Infill Galleries:-
Hardy Bulbs
...Aconitum
...Allium
...Alstroemeria
...Anemone

...Amaryllis
...Anthericum
...Antholyzas
...Apios
...Arisaema
...Arum
...Asphodeline

...Asphodelus
...Belamcanda
...Bloomeria
...Brodiaea
...Bulbocodium

...Calochorti
...Cyclobothrias
...Camassia
...Colchicum
...Convallaria
...Forcing Lily of the Valley
...Corydalis
...Crinum
...Crosmia
...Montbretia
...Crocus

...Cyclamen
...Dicentra
...Dierama
...Eranthis
...Eremurus
...Erythrnium
...Eucomis

...Fritillaria
...Funkia
...Galanthus
...Galtonia
...Gladiolus
...Hemerocallis

...Hyacinth
...Hyacinths in Pots
...Scilla
...Puschkinia
...Chionodoxa
...Chionoscilla
...Muscari

...Iris
...Kniphofia
...Lapeyrousia
...Leucojum

...Lilium
...Lilium in Pots
...Malvastrum
...Merendera
...Milla
...Narcissus
...Narcissi in Pots

...Ornithogalum
...Oxalis
...Paeonia
...Ranunculus
...Romulea
...Sanguinaria
...Sternbergia
...Schizostylis
...Tecophilaea
...Trillium

...Tulip
...Zephyranthus

Half-Hardy Bulbs
...Acidanthera
...Albuca
...Alstroemeri
...Andro-stephium
...Bassers
...Boussing-aultias
...Bravoas
...Cypellas
...Dahlias
...Galaxis,
...Geissorhizas
...Hesperanthas

...Gladioli
...Ixias
...Sparaxises
...Babianas
...Morphixias
...Tritonias

...Ixiolirions
...Moraeas
...Ornithogalums
...Oxalises
...Phaedra-nassas
...Pancratiums
...Tigridias
...Zephyranthes
...Cooperias

Uses of Bulbs:-
...
for Bedding
...
in Windowboxes
...
in Border
...
naturalized in Grass
...
in Bulb Frame
...
in Woodland Garden
...
in Rock Garden
...
in Bowls
...
in Alpine House
...
Bulbs in Greenhouse or Stove:-
...Achimenes
...Alocasias
...Amorpho-phalluses
...Arisaemas
...Arums
...Begonias
...Bomareas
...Caladiums

...Clivias
...Colocasias
...Crinums
...Cyclamens
...Cyrtanthuses
...Eucharises
...Urceocharis
...Eurycles

...Freesias
...Gloxinias
...Haemanthus
...Hippeastrums

...Lachenalias
...Nerines
...Lycorises
...Pencratiums
...Hymenocallises
...Richardias
...Sprekelias
...Tuberoses
...Vallotas
...Watsonias
...Zephyranthes

...
Plant Bedding in
......Spring

......
Summer
...
Bulb houseplants flowering inside House during:-
......
January
......
February
......
March
......
April
......
May
......
June
......
July
......
August
......
September
......
October
......
November
......
December
...
Bulbs and other types of plant flowering during:-
......
Dec-Jan
......
Feb-Mar
......
Apr-May
......
Jun-Aug
......
Sep-Oct
......
Nov-Dec
...
Selection of the smaller and choicer plants for the Smallest of Gardens with plant flowering during the same 6 periods as in the previous selection


Climber in
3 Sector Vertical Plant System
...Clematis
...Climbers
Conifer
Deciduous Shrub
...Shrubs - Decid
Deciduous Tree
...Trees - Decid
Evergreen Perennial is to compare every plant in this website, starting from July 2022
...P-Evergreen A-L
...P-Evergreen M-Z
...Flower Shape
Evergreen Shrub
...Shrubs - Evergreen
...Heather Shrub
...Heather Index
......Andromeda
......Bruckenthalia
......Calluna
......Daboecia
......Erica: Carnea
......Erica: Cinerea
......Erica: Others
Evergreen Tree
...Trees - Evergreen
Fern
Grass
Hedging
Herbaceous
Perennial

...P -Herbaceous
...Peony
...Flower Shape
...RHS Wisley
......Mixed Border
......Other Borders
Herb
Odds and Sods
Rhododendron

Rose
...RHS Wisley A-F
...RHS Wisley G-R
...RHS Wisley S-Z
...Rose Use - page links in row 6. Rose, RHS Wisley and Other Roses rose indices on each Rose Use page
...Other Roses A-F
...Other Roses G-R
...Other Roses S-Z
Pruning Methods
Photo Index
R 1, 2, 3
Peter Beales Roses
RV Roger
Roses

Soft Fruit
Top Fruit
...Apple

...Cherry
...Pear
Vegetable
Wild Flower and
Butterfly page links are in next row

Topic -
Butterflies in the UK mostly use native UK wildflowers.

Butterfly Species.

Egg, Caterpillar, Chrysalis and Butterfly Usage
of Plants.

Plant Usage by
Egg, Caterpillar, Chrysalis and Butterfly.

Wild Flower
...Flower Shape of all wildflower/ cultivated plants with Landscape USA Uses

7 Flower Colours per month and
UK Plant Uses
with its
flower colour page,
space,
Site Map page in its flower colour NOTE Gallery
...Blue Note
....Scented Flower, Foliage, Root
....Story of their Common Names
....Use of Plant with Flowers
....Use for Non-Flowering Plants
....Edible Plant Parts
....Flower Legend
....Flowering plants of Chalk and Limestone Page 1, Page 2
....Flowering plants of Acid Soil Page 1
...Brown Botanical Names
....Food for
Butterfly/Moth

...Cream Common Names
....Coastal and Dunes
....Sandy Shores and Dunes
...Green Note
....Broad-leaved
Woods

...Mauve Note
....Grassland - Acid, Neutral, Chalk
...Multi-Cols Note
....Heaths and Moors
...Orange Note
....Hedgerows and Verges
...Pink A-G Note
....Lakes, Canals and Rivers
...Pink H-Z Note
....Marshes, Fens,
Bogs

...Purple Note
....Old Buildings and Walls
...Red Note
....Pinewoods
...White A-D Note
....Saltmarshes
....Shingle Beaches, Rocks and Cliff Tops
...White E-P Note
....Other
...White Q-Z Note
....Number of Petals
...Yellow A-G Note
....Pollinator
...Yellow H-Z Note
....Poisonous Parts
...Shrub/Tree Note
....River Banks and
other Freshwater Margins


Poisonous
Wildflower Plants.


You know its name, use
Wild Flower Plant Index a-h, i-p, q-z.
You know which habitat it lives in, use
on
Acid Soil,
on
Calcareous
(Chalk) Soil
,
on
Marine Soil,
on
Neutral Soil,
is a
Fern,
is a
Grass,
is a
Rush, or
is a
Sedge.
You have seen its flower, use Comparison Pages containing Wild Flower Plants and Cultivated Plants in the
Colour Wheel Gallery.

Each plant named in each of the 180 Wildflower Family Pages within their 23 Galleries may have a link to:-
1) its Plant Description Page in its Common Name column in one of those Wildflower Plant Galleries and will have links,
2) to external sites to purchase the plant or seed in its Botanical Name column,
3) to see photos in its Flowering Months column and
4) to read habitat details in its Habitat Column.

WILD FLOWER FAMILY PAGE MENU
Adder's Tongue
Amaranth
Arrow-Grass
Arum
Balsam
Bamboo
Barberry
Bedstraw
Beech
Bellflower
Bindweed
Birch
Birds-Nest
Birthwort
Bogbean
Bog Myrtle
Borage
Box
Broomrape
Buckthorn
Buddleia
Bur-reed
Buttercup
Butterwort
Cornel (Dogwood)
Crowberry
Crucifer (Cabbage/Mustard) 1
Crucifer (Cabbage/Mustard) 2
Cypress
Daffodil
Daisy
Daisy Cudweeds
Daisy Chamomiles
Daisy Thistle
Daisy Catsears Daisy Hawkweeds
Daisy Hawksbeards
Daphne
Diapensia
Dock Bistorts
Dock Sorrels
Clubmoss
Duckweed
Eel-Grass
Elm
Filmy Fern
Horsetail
Polypody
Quillwort
Royal Fern
Figwort - Mulleins
Figwort - Speedwells
Flax
Flowering-Rush
Frog-bit
Fumitory
Gentian
Geranium
Glassworts
Gooseberry
Goosefoot
Grass 1
Grass 2
Grass 3
Grass Soft
Bromes 1

Grass Soft
Bromes 2

Grass Soft
Bromes 3

Hazel
Heath
Hemp
Herb-Paris
Holly
Honeysuckle
Horned-Pondweed
Hornwort
Iris
Ivy
Jacobs Ladder
Lily
Lily Garlic
Lime
Lobelia
Loosestrife
Mallow
Maple
Mares-tail
Marsh Pennywort
Melon (Gourd/Cucumber)
Mesem-bryanthemum
Mignonette
Milkwort
Mistletoe
Moschatel
Naiad
Nettle
Nightshade
Oleaster
Olive
Orchid 1
Orchid 2
Orchid 3
Orchid 4
Parnassus-Grass
Peaflower
Peaflower
Clover 1

Peaflower
Clover 2

Peaflower
Clover 3

Peaflower Vetches/Peas
Peony
Periwinkle
Pillwort
Pine
Pink 1
Pink 2
Pipewort
Pitcher-Plant
Plantain
Pondweed
Poppy
Primrose
Purslane
Rannock Rush
Reedmace
Rockrose
Rose 1
Rose 2
Rose 3
Rose 4
Rush
Rush Woodrushes
Saint Johns Wort
Saltmarsh Grasses
Sandalwood
Saxifrage
Seaheath
Sea Lavender
Sedge Rush-like
Sedges Carex 1
Sedges Carex 2
Sedges Carex 3
Sedges Carex 4
Spindle-Tree
Spurge
Stonecrop
Sundew
Tamarisk
Tassel Pondweed
Teasel
Thyme 1
Thyme 2
Umbellifer 1
Umbellifer 2
Valerian
Verbena
Violet
Water Fern
Waterlily
Water Milfoil
Water Plantain
Water Starwort
Waterwort
Willow
Willow-Herb
Wintergreen
Wood-Sorrel
Yam
Yew

Topic -
The following is a complete hierarchical Plant Selection Process

dependent on the Garden Style chosen
Garden Style
...Infill Plants
...12 Bloom Colours per Month Index
...12 Foliage Colours per Month Index
...All Plants Index
...Cultivation, Position, Use Index
...Shape, Form
Index

Topic -

All Flowers 53 with
...Use of Plant and
Flower Shape
- page links in bottom row

All Foliage 53
instead of redundant
...(All Foliage 212)


All Flowers
per Month 12


Bee instead of wind pollinated plants for hay-fever sufferers
All Bee-Pollinated Flowers
per Month
12
...Index

Rock Garden and Alpine Flowers
Rock Plant Flowers 53

...Rock Plant Photos

Flower Colour Wheel without photos, but with links to photos
12 Bloom Colours
per Month Index

...All Plants Index

Topic -
Use of Plant in your Plant Selection Process

Plant Colour Wheel Uses
with
1. Perfect general use soil is composed of 8.3% lime, 16.6% humus, 25% clay and 50% sand, and
2. Why you are continually losing the SOIL STRUCTURE so your soil - will revert to clay, chalk, sand or silt.
Uses of Plant and Flower Shape:-
...Foliage Only
...Other than Green Foliage
...Trees in Lawn
...Trees in Small Gardens
...Wildflower Garden
...Attract Bird
...Attract Butterfly
1
, 2
...Climber on House Wall
...Climber not on House Wall
...Climber in Tree
...Rabbit-Resistant
...Woodland
...Pollution Barrier
...Part Shade
...Full Shade
...Single Flower provides Pollen for Bees
1
, 2, 3
...Ground-Cover
<60
cm
60-180cm
>180cm
...Hedge
...Wind-swept
...Covering Banks
...Patio Pot
...Edging Borders
...Back of Border
...Poisonous
...Adjacent to Water
...Bog Garden
...Tolerant of Poor Soil
...Winter-Flowering
...Fragrant
...Not Fragrant
...Exhibition
...Standard Plant is 'Ball on Stick'
...Upright Branches or Sword-shaped leaves
...Plant to Prevent Entry to Human or Animal
...Coastal Conditions
...Tolerant on North-facing Wall
...Cut Flower
...Potted Veg Outdoors
...Potted Veg Indoors
...Thornless
...Raised Bed Outdoors Veg
...Grow in Alkaline Soil A-F, G-L, M-R,
S-Z
...Grow in Acidic Soil
...Grow in Any Soil
...Grow in Rock Garden
...Grow Bulbs Indoors

Uses of Bedding
...Bedding Out
...Filling In
...Screen-ing
...Pots and Troughs
...Window Boxes
...Hanging Baskets
...Spring Bedding
...Summer Bedding
...Winter Bedding
...Foliage instead of Flower
...Coleus Bedding Photos for use in Public Domain 1

Uses of Bulb
...Other than Only Green Foliage
...Bedding or Mass Planting
...Ground-Cover
...Cut-Flower
...Tolerant of Shade
...In Woodland Areas
...Under-plant
...Tolerant of Poor Soil
...Covering Banks
...In Water
...Beside Stream or Water Garden
...Coastal Conditions
...Edging Borders
...Back of Border or Back-ground Plant
...Fragrant Flowers
...Not Fragrant Flowers
...Indoor
House-plant

...Grow in a Patio Pot
...Grow in an Alpine Trough
...Grow in an Alpine House
...Grow in Rock Garden
...Speciman Plant
...Into Native Plant Garden
...Naturalize in Grass
...Grow in Hanging Basket
...Grow in Window-box
...Grow in Green-house
...Grow in Scree
...Naturalized Plant Area
...Grow in Cottage Garden
...Attracts Butterflies
...Attracts Bees
...Resistant to Wildlife
...Bulb in Soil:-
......Chalk
......Clay
......Sand
......Lime-Free (Acid)
......Peat

Uses of Rose
Rose Index

...Bedding 1, 2
...Climber /Pillar
...Cut-Flower 1, 2
...Exhibition, Speciman
...Ground-Cover
...Grow In A Container 1, 2
...Hedge 1, 2
...Climber in Tree
...Woodland
...Edging Borders
...Tolerant of Poor Soil 1, 2
...Tolerant of Shade
...Back of Border
...Adjacent to Water
...Page for rose use as ARCH ROSE, PERGOLA ROSE, COASTAL CONDITIONS ROSE, WALL ROSE, STANDARD ROSE, COVERING BANKS or THORNLESS ROSES.
...FRAGRANT ROSES
...NOT FRAGRANT ROSES

Topic -
Camera Photo Galleries showing all 4000 x 3000 pixels of each photo on your screen that you can then click and drag it to your desktop as part of a Plant Selection Process:-

RHS Garden at Wisley

Plant Supports -
Pages
1
, 2, 3, 8, 11,
12, 13,
Plants 4, 7, 10,
Bedding Plants 5,
Plant Supports for Unknown Plants 5
,
Clematis Climbers 6,
the RHS does not appear to either follow it's own pruning advice or advice from The Pruning of Trees, Shrubs and Conifers by George E. Brown.
ISBN 0-571-11084-3 with the plants in Pages 1-7 of this folder. You can see from looking at both these resources as to whether the pruning carried out on the remainder of the plants in Pages 7-15 was correct.

Narcissus (Daffodil) 9,
Phlox Plant Supports 14, 15

Coleus Bedding Foliage Trial - Pages
1, 2, 3, 4, 5,
6, 7, 8, 9, 10,
11, 12, 13, 14, 15,
16, 17, 18, 19, 20,
21, 22, 23, 24, 25,
26, 27, 28, 29, 30,
31, 32, Index

National Trust Garden at Sissinghurst Castle
Plant Supports -
Pages for Gallery 1

with Plant Supports
1, 5, 10
Plants
2, 3, 4, 6, 7, 8, 9,
11, 12
Recommended Rose Pruning Methods 13
Pages for Gallery 2
with Plant Supports
2
,
Plants 1, 3, 4, 5, 6, 7

Dry Garden of
RHS Garden at
Hyde Hall

Plants - Pages
without Plant Supports
Plants 1
, 2, 3, 4, 5, 6, 7, 8, 9

Nursery of
Peter Beales Roses
Display Garden

Roses Pages
1, 2, 3, 4, 5,
6, 7, 8, 9, 10,
11, 12, 13

Nursery of
RV Roger

Roses - Pages
A1,A2,A3,A4,A5,
A6,A7,A8,A9,A10,
A11,A12,A13,A14,
B15,
B16,B17,B18,B19,
B20,
B21,B22,B23,B24,
B25,
B26,B27,B28,B29,
B30,
C31,C32,C33,C34,
C35,
C36,C37,C38,C39,
C40,
C41,CD2,D43,D44,
D45,
D46,D47,D48,D49,
E50,
E51,E52,F53,F54,
F55,
F56,F57,G58,G59,
H60,
H61,I62,K63,L64,
M65,
M66,N67,P68,P69,
P70,
R71,R72,S73,S74,
T75,
V76,Z77, 78,

Damage by Plants in Chilham Village - Pages
1, 2, 3, 4

Pavements of Funchal, Madeira
Damage to Trees - Pages
1, 2, 3, 4, 5,
6, 7, 8, 9, 10,
11, 12, 13
for trees 1-54,
14, 15,
16, 17, 18, 19, 20,
21, 22, 23, 24, 25,
for trees 55-95,
26, 27, 28, 29, 30,
31, 32, 33, 34, 35,
36, 37,
for trees 95-133,
38, 39, 40,
41, 42, 43, 44, 45,
for trees 133-166

Chris Garnons-Williams
Work Done - Pages
1, 2, 3, 4, 5,
6, 7, 8, 9, 10,
11, 12, 13

Identity of Plants
Label Problems - Pages
1, 2, 3, 4, 5,
6, 7, 8, 9, 10,
11

Ron and Christine Foord - 1036 photos only inserted so far - Garden Flowers - Start Page of each Gallery
AB1 ,AN14,BA27,
CH40,CR52,DR63,
FR74,GE85,HE96,

Plant with Photo Index of Ivydene Gardens - 1187
A 1, 2, Photos - 43
B 1, Photos - 13
C 1, Photos - 35
D 1, 2, 3, 4, 5, 6, 7,
Photos - 411
with Plants causing damage to buildings in Chilham Village and Damage to Trees in Pavements of Funchal
E 1, Photos - 21
F 1, Photos - 1
G 1, Photos - 5
H 1, Photos - 21
I 1, Photos - 8
J 1, Photos - 1
K 1, Photos - 1
L 1, Photos - 85
with Label Problems
M 1, Photos - 9
N 1, Photos - 12
O 1, Photos - 5
P 1, Photos - 54
Q 1, Photos -
R 1, 2, 3,
Photos - 229
S 1, Photos - 111
T 1, Photos - 13
U 1, Photos - 5
V 1, Photos - 4
W 1, Photos - 100
with Work Done by Chris Garnons-Williams
X 1 Photos -
Y 1, Photos -
Z 1 Photos -
Articles/Items in Ivydene Gardens - 88
Flower Colour, Num of Petals, Shape and
Plant Use of:-
Rock Garden
within linked page

Topic -
Fragrant Plants:-

Sense of Fragrance from Roy Genders
Fragrant Plants:-
Trees and Shrubs with Scented Flowers
1
, 2, 3, 4, 5, 6
Shrubs bearing Scented Flowers for an Acid Soil
1
, 2, 3, 4
Shrubs bearing Scented Flowers for a
Chalky or Limestone Soil
1
, 2, 3, 4
Shrubs bearing Scented leaves for a
Sandy Soil
1
, 2, 3
Herbaceous Plants with Scented Flowers
1
, 2, 3
Annual and Biennial Plants with Scented Flowers or Leaves
1
, 2
Bulbs and Corms with Scented Flowers
1
, 2, 3, 4, 5
Scented Plants of Climbing and Trailing Habit
1
, 2, 3
Winter-flowering Plants with Scented Flowers
1
, 2
Night-scented Flowering Plants
1
, 2

Topic -
Website User Guidelines

My Gas Service Engineer found Flow and Return pipes incorrectly positioned on gas boilers and customers had refused to have positioning corrected in 2020.
