Design Cases

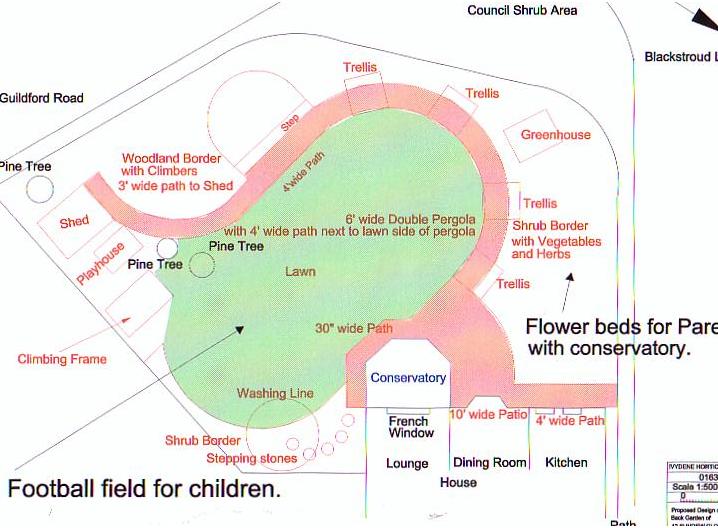

When designing a garden, it is vital to know who and for how long the resulting designed and landscaped garden is going to be maintained by. The book 'The One Hour Garden' describes what maintenance work can be done in the time that you have allotted; and therefore what besides a lawn, you can have in your garden. My redesign and construction work to be done on my 3 gardens - as shown by Case 2 - must be to reduce the maintenance time required to the time I have available. If the gardens are first weeded, pruned, mulched, mown and bare earth converted to lawns using grass seed, then construction can take place in the future - as free time allows during a week or fortnight after the maintenance has been done.

In Case 4, the combination of the Structural and Planting Designs would create a garden that I would be able to maintain in one day a fortnight. I would install a 3" deep mulch in the spring on the beds, so that I can prune the shrubs/trees and hoe the odd weed; whilst the father mows the lawns, the mother tends the vegetable garden and their teenage daughters play football!!

The children in Case 5 loved to look at creepy-crawlies and wildlife, so that together with low-cost the design for different areas in a terrace house garden was created.

Construction Cases

Case 3 is building a drive on clay and it is important to get the part you will not see - the foundations - done correctly.

Case 8 is creating a pond with its pitfalls for foundations.

Maintenance Cases

If you are asking someone to maintain your garden, then do provide the complete picture. If as in Case 1, you intend to sell the property, then look at this - as not a maintenance but as a selling job - and get that job done instead.

Case 6 is creating a vegetable garden in a back garden during the maintenance program of one day a fortnight to maintain it and the remainder of the back and front gardens. This was done over 7 years using a crop rotation system

Concrete ponds are likely to crack open due to movement in the ground levels due to being in clay or vibration caused by road traffic if it is fairly close. Case 7 shows no planting shelves for the pond plants.

Section below on Problems for Houseowners and Builders when the new home is surrounded by clay and how to solve them.

Problems for Houseowners and Builders when the new home is surrounded clay and how to solve them.

8 problems caused by clay:-

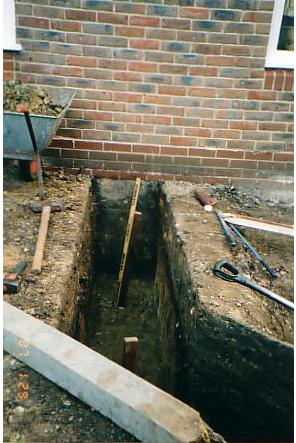

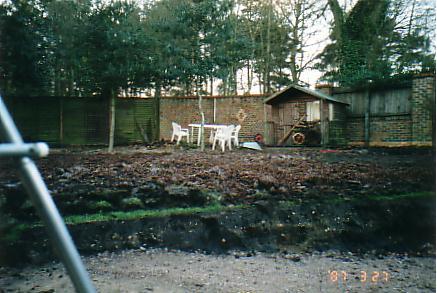

• In creating a new driveway for a client you can see (from the top photos) that when it rains, that the indentations in the clay caused by my boots do fill with water and then that water does not drain away.
  Solution -
  Had I installed a soakaway under the drive or elsewhere in the back garden below the drive, then it would have filled with water and not drained.
  If the ground is clay, then that soakaway will fill and never empty. In that case if you create that soakaway as a continuous one about 2 feet away from the boundary with it starting 3 feet from house and continuing round to meet the entrance of the drive, then planting privet or yew evergreen hedge in that 2 feet gap between it and the boundary will absorb the water from that driveway. The 2 feet depth of existing clay soil between that extended soakaway and the boundary should be replaced by the following mixture of 1 part existing soil and 1 part sand to provide a soil where the soakaway water can move from the soakaway through the soil to the hedge roots. The french drain used to transport the water should be surrounded by 4 inches of coarse pea-shingle inside an envelope of geotextile to stop that pea-shingle from mixing with the mixed soil.
• The same happened to a client's house, which subsided after 6 years from being built. The builder had run out of top soil and instead of putting sand as the rest of the back garden was composed of where it had been growing a forest, they put 24 inches (60 cms) of blue clay the full width of the back of the house which sloped up and met the upward sloping lawn laid by the builders. The lawn prevented much of the rainwater from entering the sand underneath and thus draining away and ended up on the 144 inch (360 cms) wide slabbed patio before hitting the house wall and soaking into the blue clay below the slabs. Clay can absorb 40% of its own volume before it turns from a solid to a liquid. When the clay absorbs the water, then the suction on the housewall is sufficient to raise that wall. When it dries out then the wall subsides and so it subsided. The 6th photo down the Case 3a Clay on Sand Subsidence of New House Page shows the blue clay as the dark section at the top of the trench with the sand being dark yellow below it.
  Solution 1 -
  Instead of the patio sloping up the back garden, I installed a concrete foundation for a conservatory with the concrete going 12 inches (30 cms) deeper than the 24 depth of blue clay. Then, the foundation for the new Path/Patio at the back of the house was sloped away from the house at 1:40 and the rain drained to the Gully, thence to the Sump in the middle of the garden. I then bought a powerful Cultivator Tiller and rotovated the back lawn. Using an asphalt rake and a spade with wheelbarrow; I then levelled the remaining back garden lawn in both directions, with the conservatory/path areas sloping away from the house to allow rainwater to be collected and taken to the sump, instead of causing further damage to the house. The levelled lawn then needed a Patio wall to stop the earth from being unsurported. A builder than built the conservatory, the restraining patio wall and the new path/patio.
  Solution 2 -
  If that area of blue clay had been surrounded by the Aquadyne Drainage System (details at bottom of this page) by the original builders to a 36 inches depth, then the problem would never have arisen as all the rainwater would have been transferred to the surrounding sand soil and the underlying sand. Thus the suction power of the clay would have been on the Aquadyne Drainage System and not the house wall. Since the Aquadyne Drainage System is plastic it would if it moved up and down and not taken the house wall with it.
• There are other factors causing Subsidence of Buildings, especially Tree Roots in Clay Soils.
• I spent some months maintaining the grounds within 5 acres of a new Care Home. The previous use for these 5 acres had been as a boys school. This had been demolished and the rubble then built on for the 5 new residential Care Buildings with its Administration/Kitchen Building. 5000 shrubs and trees were planted and at the end of the first year, I audited what remained - 2000 out those 5000 had died. The builders had generously added a 2 inches (5 cm) depth of topsoil before planting into that and the rubble under it.
  Solution -
  I bought an American Super Tomahawk Chipper/Shredder and shredded the tree/shrub prunings during the winter and applied the shreddings as a mulch in the further beds on the 5 acre estate during the winter to provide nutrients for the surviving plant.
  I did suggest putting a 4 inch mulch of bark on top of the ground in the beds at a trifling cost of £19,000, since digging up the plants and transfering them to a nursery bed, before excaving a further 12 inches (30 cm) and replacing the 14 inch (35 cm) depth with good soil mixed with manure; and then its plants; would have been extremely time consuming and expensive. This money was not forthcoming, so when I started cutting the lawns, I added the mowings to the beds as a mulch. I was told that this was unsightly and to stop doing that - at this point I resigned since the contract for the original planting only included making up the losses in the first year, I could not see that many of the plants would survive in the succeeding years.
  You need a minimum of a spade depth of at least 8 inches (20 cms) of topsoil with a 4 inch mulch of bark or spent mushroom compost surrounding each plant after the planting, plus an irrigation system - that means 12 inches below the top of the bed edging, so that the mulch does not flow out onto the lawn, patio, drive or paths after it has been laid.
• In maintaining a client's lawn, I found that after rain that their lawn was squelchy. The lawn was laid on a clay topsoil.
  Solution-
  I mowed the lawn quite low and applied Top Dressing at the recommended rate. I repeated this twice more once a month. After that, the problem was sorted.
• I received this from a client - An unsuccessful planting scheme had left bare areas of garden as plants failed to survive winter in the waterlogged clay soil. The loss of numerous plants and the cost of replacing them had left us disheartened.
  Solution -
  A 150mm (6 inch) deep mulch of mixed peat, sharp washed sand and horticultural grit was applied on top of a heavy clay soil to improve its structure, and stop the plants therein from drowning, at £10 a square metre. The mix was:
  • 4 cubic metres of Peat (to provide the Organic Polymers/Organic Matter and Carbon.)
  • 2 cubic metres of Sharp Washed Sand (to provide the sand for the production of microaggregates)
  • 2 cubic metres of Horticultural Grit (to provide larger particles for aggregation)
  • 25kg of Garden Lime (to provide Calcium for the plants and allow clay minerals to bond together to form domains. Once clay minerals are stacked together to form domains, they can then bond with organic matter to form microaggregates)
  • 25 kg of Sulphate of Iron (to provide Iron to act as a trace element and to create soil colloid for buffering chemical nutrients in the soil for later use by plants)
  • 25Kg of Sulphate of Potash ( to provide fertilizer for the plants)

    and the following was sent to me in October 2004:- An unsuccessful planting scheme had left bare areas of garden as plants failed to survive winter in the waterlogged clay soil. The loss of numerous plants and the cost of replacing them had left us disheartened. It was evident that remedial action was needed in the form of a mixture of gravel, sand and peat to create an organic loam. Approximately six inches was added in April and left to settle and do its job. By July there was a noticeable difference in the quality of the soil and the plants. Shrubs with sparse, mottled leaves were looking glossy and robust, overall growth had increased (including the weeds!) and the soil was holding its moisture well. But the biggest difference came in the confidence it gave us to transform the garden. The borders used to be a no-go area between May and September as the clay baked and cracked, but the new soil was easy to handle and weeds could be successfully removed. We realised that there are no quick fixes - the key to a healthy garden is rich, nutritous soil. Once our plants began to thrive we were optimistic that, with good advice, we could create a garden to be proud of.
• I visited a prospective client whose second laid lawn sloping up from the house in the back garden was needed to be replaced. The turves had dried and the clay soil had also dried with the result that the turves separated. She had had the builder lay a horizontal patio at the back of her new house and the lawn went from there up to the next house. Her home and garden were on clay. I did point out to her that when it rained, then the patio would become a lake and her house would subside, since not only the rain falling on the patio but the rain falling on the lawn would also end up at the patio. I refused to quote for her lawn replacement.
  Solution -
  in next row.
• When requested by a builder, I visited his site where huge excavators were used to dig the trenches for the drains and utilities. The garden at the back of the showhouse had a downward slope from the garden wall to the house and moss was already growing round the french windows facing the back garden.
  Solution -
  in next Row.


Builders do sell the original topsoil including

• the grass,
• the zone of organic matter and the
• zone where mineral and organic matter are mixed

where the new building and its garden areas are to be built.

The consolidated parent material (bedrock) is usually sand, chalk or clay with flint possibly. At the end of building; the builders rubble is covered with possibly only a 2 inch (5 cms) depth of imported topsoil, which might be the washings from the sugar beet in the sugar industry. This is covered with turf and the unsuspecting public is offered the result. As likely as not one of their gardens slopes towards the house and even with the modern depth of foundation wall, there is no guarantee that subsidence will not occur.

If every garden of a new house had a 12 inch depth of soil removed from its new garden area, then at the end of the building work, the Aquadyne Drainage System would be laid round the entire boundary. Next to it then plant the relevant Instant Hedge on the non-house wall sides to absorb the rainwater collected by that drainage system

The mix to change clay soil into a friable useful soil in less than 4 months for the above domestic garden problem was in royal blue colour typing. Using the burgundy colour typing components, the builder could create the following soil mix for his gardens:

• 4 cubic metres of Peat (to provide the Organic Polymers/Organic Matter and Carbon.)
• 2 cubic metres of Sharp Washed Sand (to provide the sand for the production of microaggregates).
• 2 cubic metres of Horticultural Grit (to provide larger particles for aggregation)
  752,000 tons of glass are now recycled annually in the UK. Crushed glass (cullet) is used in Agriculture and landscape applications, such as top dressing, root zone material or golf bunker sand, so builders could replace the Sharp washed Sand and the Horticultural Grit with cullet.
• 25kg of Garden Lime (to provide Calcium for the plants and allow clay minerals to bond together to form domains. Once clay minerals are stacked together to form domains, they can then bond with organic matter to form microaggregates).
  Poultry litter - Uric acid and organic nitrogen (N) in the bird excreta and spilled feed are converted to ammonium (NH4+) by the microbes in the litter. Ammonium, a plant-available N form, can bind to litter and also dissolve in water. Ammonium is a highly reactive ion that bonds with sulfates, nitrates and phosphates to form ammonium salts that improve the nutrient value of litter when land applied as fertilizer.
  Plasterboard (is gypsum - Calcium sulfate dihydrate normally pressed between a paper facer and backer) wastage in the UK is estimated to be 300,0000 tonnes per year. Builders could replace the Garden Lime with the reaction of the poultry litter on the gypsum.
  The recommendations stated in the RHS article are for the finely ground garden lime (calcium carbonate) sold in garden centres in kilograms (kg) per square metre or ounces per square yard. They are based on the Department for Environment, Food and Rural Affairs (DEFRA) recommendations for incorporation into the top 20cm (8in) of soil and are enough to raise the soil pH to pH6.5. This is considered the best all-round pH for the majority of garden plants.
• 25 kg of Sulphate of Iron (to provide Iron to act as a trace element and to create soil colloid for buffering chemical nutrients in the soil for later use by plants)
• 25Kg of Sulphate of Potash ( to provide fertilizer for the plants)

If water with 150 kgs of clay was first added to the Concrete TruckMixer and then the required volume of cullet followed by the required volume of waste plasterboard, the mixture is then mixed for an hour. If the cullet/waste plasterboard mixture is passed through the poultry houses to mix with the poultry litter on the litter floor before being collected into the next Concrete TruckMixer, then the houses would be cleaner and smell less. The required volume of waste from beer making could replace the Peat above and the requisite Sulphate of Iron and Sulphate of Potash could be added to the Concrete TruckMixer before that mixture from the Poultry Farm litter floor is added.

That soil mixture could then be mixed for 30 minutes before applying it to the garden areas of the new houses built by the builder to an 11 inch (27.5 cms) depth. The resulting mixture would then integrate with the clay and create a deep topsoil within 3 months.

All the requirements for a soil as shown in the figure above would then have mixed together and time will increase the bacteria and get a new soil structure created.

The following type of turf could then be laid over the proposed lawn areas a fortnight later:-

RTF (Rhizomatous Tall Fescue), bred by Barenbrug Research USA, produces rhizomes (an underground stem) that send a shoot up to the soil surface while extending new roots downwards. In fact, RTF can root to 1.5 metres deep giving it a chance to tap into water reserves that normal lawn turf cannot reach.
Because RTF is suited to almost all soil types and needs little maintenance and minimal irrigation, gardeners will be rewarded with beautiful lawns, rich in colour and disease resistant, not only in the summer but all year round. During the winter months, the lawn will hold its lush green colour and can resist frost and darker corners. With the onset of spring the rapid germination and quick spring green-up means that lawns are greener earlier.
